Twiflex is an England-based manufacturer of industrial brakes and related components. Known for its extensive range of disc brake calipers and thrusters, Twiflex brakes have been used in safety critical industrial applications around the world since 1946.

Hindon – Your American Partner for Twiflex Brakes

Hindon is the ideal partner for American companies who depend on Twiflex brakes.

Backed by deep product/application knowledge and an old-school commitment to customer service, Hindon is uniquely able to support Twiflex customers with any technical and commercial needs. With many commonly used Twiflex brake models in stock (same day shipping available) and product experts standing by ready to chat (over the phone, via our Livechat, or email), we’re eager to play a part in keeping your operation running safely and efficiently.

  • Commonly used Twiflex brakes and parts stocked with same day shipping
  • Highly responsive and knowledgeable staff committed to customer service
  • Engineers and product experts help with technical questions and application support
Hindon’s engineering team in 1985

Hindon’s product experts and engineers have supported customers with industrial brakes and braking systems since 1985

Product Overview

Twiflex’s wide range of industrial disc brake calipers includes spring applied (fail safe) brakes which can be released pneumatically, hydraulically, or electrically, as well as direct acting (active) brakes. Some commonly used Twiflex brake models include:

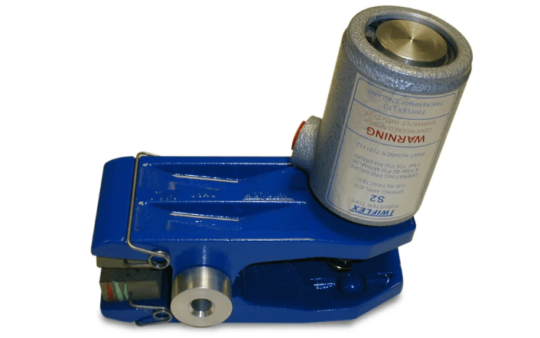

MU Series

Twiflex’s smallest disc brake calipers – intended for low torque, light stopping and holding applications. Suitable for use on disc thicknesses of 8mm and 12.7mm.  Minimum disc diameter is 150mm.

Model numbers: MU3, MUP, MUS2, MUS3, MUS4, MUH

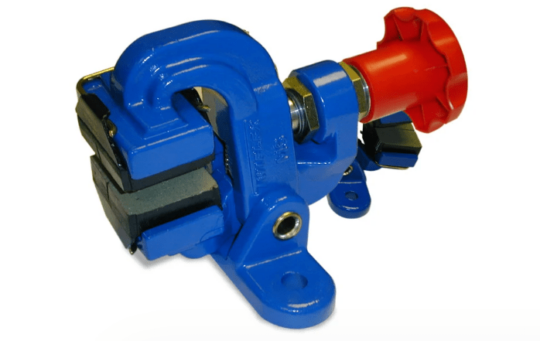

MS Series

Similar to MU series, but capable of higher torque output.  Suitable for use on disc thickness of 12.7mm.  Minimum disc diameter is 250mm.

Model numbers: MSA, MSD, MSE, MSG, MSF, MSH, MSK, MSL

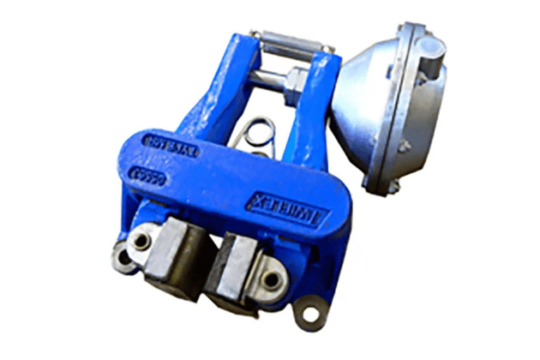

MR Series

Similar to MS series, but capable of even higher torque output. Suitable for use on disc thicknesses of 12.7mm and 25.4mm.  Minimum disc diameter is 250mm.

Model numbers: MR, MR2, MRA, MRB, MRD, MRE, MRG, MRH, MRW, MRK, MRL

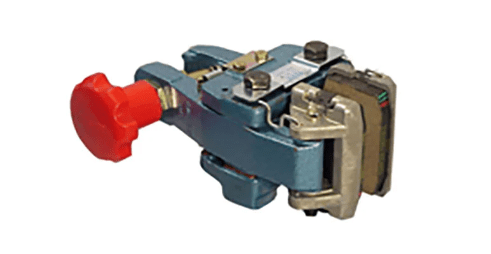

MX Series

Similar to MU/MS/MR series, but capable of highest torque values. Suitable for use on disc thicknesses of 12.7mm, 25.4mm, 30mm and 40mm.  Minimum disc diameter is 300mm.

Model numbers: MX13, MX25, MX30, MX40, SMX, MXA, MXB, MXD, MXE, MXG, MXH, MXW, MXEA, MXS, MXSH, MXK, MXL

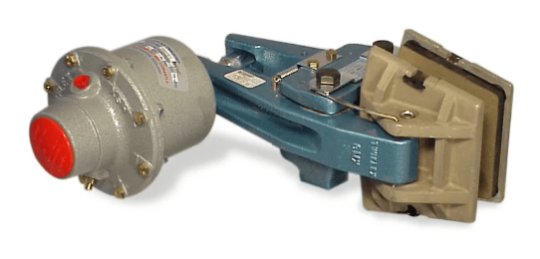

GMX Series

Similar to MX series but offers greater pad area. Suitable for use on disc thicknesses of 25.4mm, 30mm and 40mm.  Minimum disc diameter is 610mm.

Model numbers: GMX25, GMX30, GMX40, SGMX, GMXA, GMXB, GMXD, GMXE, GMXG, GMXH, GMXW, GMXEA, GMXS, GMXSH, GMR, GMRP, GMRH, GMRS, GMRSD, GMRSD, GMRSH

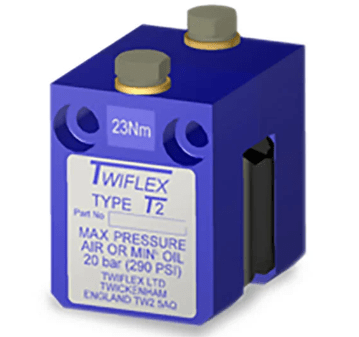

T2 Series

Pneumatically or hydraulically applied modular disc brake caliper with split caliper design. Modules can be mounted on each side of a central mounting plate of the same thickness as the brake disc or side-mounted with a spacer equal to the disc thickness between the two halves. Minimum disc thickness is 5mm and minimum disc diameter is 120mm.

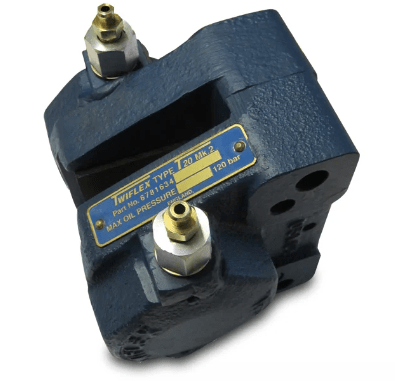

T20 Series

Hydraulically applied modular disc brake caliper with side-mounted, split caliper design. Minimum disc thickness is 12.7mm and minimum disc diameter is 300mm.

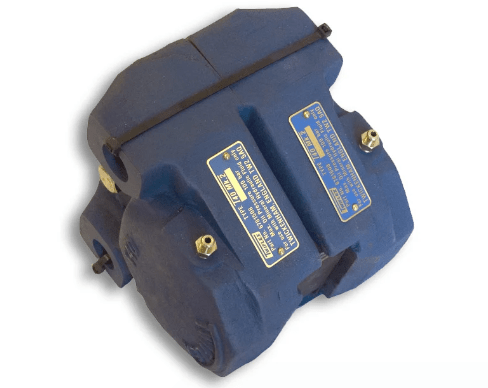

T40 Series

Hydraulically applied modular disc brake caliper with side-mounted, split caliper design. Minimum disc thickness is 20mm and minimum disc diameter is 300mm.

Brake Pads

Hindon stocks replacement brake pads for many commonly used Twiflex brakes and can advise the appropriate replacement brake pads for any Twiflex brake.

Brake Thrusters

Hindon stocks commonly used brake thrusters used on a variety of Twiflex brake models and can advise the appropriate replacement thruster for any Twiflex brake arrangement.

Contact Us

Contact our helpful industrial brake experts for anything related to your Twiflex brake needs!
