Electromagnetic fail-safe brakes are spring applied and use an electromagnetic solenoid to hold the brake open. If the brake is turned off or power is lost, the spring engages the brake.

We incorporate both electromagnetic disc and drum brakes into our industrial braking systems. We also provide comprehensive repair services for these brakes.

Advantages:

Electromagnetic brakes allow for quick operation, as they set more quickly than most other types of fail-safe brakes. They also allow for adjustable torque, which enables fine tuning of the braking process. Electromagnetic brakes are often used when environmental contamination by leaking fluids is a major concern (e.g., hydraulic fluid in the case of hydraulic brakes).

Disadvantages:

Electromagnetic brakes are generally more expensive than other types of fail-safe brakes (e.g., a pneumatic brake that achieves a comparable torque level). This is because electromagnetic brakes are inherently expensive due to the amount of expensive materials like copper they require. Similarly, electromagnetic brakes can be difficult to fit into small spaces, especially when compared to hydraulic brakes. Finally, electromagnetic brakes may not be the best option if the application requires a high duty cycle, a situation in which electrohydraulic thruster brakes excel.

Products

93 results

Filter

Name

Type

Actuation

Maximum Torque (N·m)

Diameter (mm)

View as:
93 results
  • S-0T, electromagnetic disc brake, industrial disc brake, fail-safe disc brake
    S-0T-1250

    Type: Disc
    Maximum Torque: 49950 N·m
    Diameter: 1250 mm

  • S-0T, electromagnetic disc brake, industrial disc brake, fail-safe disc brake
    S-0T-1100

    Type: Disc
    Maximum Torque: 43200 N·m
    Diameter: 1100 mm

  • S-0T, electromagnetic disc brake, industrial disc brake, fail-safe disc brake
    S-0T-1000

    Type: Disc
    Maximum Torque: 38700 N·m
    Diameter: 1000 mm

  • S-0T, electromagnetic disc brake, industrial disc brake, fail-safe disc brake
    S-0T-900

    Type: Disc
    Maximum Torque: 34200 N·m
    Diameter: 900 mm

  • S-0T, electromagnetic disc brake, industrial disc brake, fail-safe disc brake
    S-0T-800

    Type: Disc
    Maximum Torque: 29700 N·m
    Diameter: 800 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, S-1T
    S-1T-1250

    Type: Disc
    Maximum Torque: 27685 N·m
    Diameter: 1250 mm

  • S-0T, electromagnetic disc brake, industrial disc brake, fail-safe disc brake
    S-0T-710

    Type: Disc
    Maximum Torque: 25650 N·m
    Diameter: 710 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, S-1T
    S-1T-1100

    Type: Disc
    Maximum Torque: 24010 N·m
    Diameter: 1100 mm

  • S-0T, electromagnetic disc brake, industrial disc brake, fail-safe disc brake
    S-0T-630

    Type: Disc
    Maximum Torque: 22050 N·m
    Diameter: 630 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, S-1T
    S-1T-1000

    Type: Disc
    Maximum Torque: 21560 N·m
    Diameter: 1000 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, S-1T
    S-1T-900

    Type: Disc
    Maximum Torque: 19110 N·m
    Diameter: 900 mm

  • S-0T, electromagnetic disc brake, industrial disc brake, fail-safe disc brake
    S-0T-560

    Type: Disc
    Maximum Torque: 18900 N·m
    Diameter: 560 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, S-1T
    S-1T-800

    Type: Disc
    Maximum Torque: 16660 N·m
    Diameter: 800 mm

  • S-0T, electromagnetic disc brake, industrial disc brake, fail-safe disc brake
    S-0T-500

    Type: Disc
    Maximum Torque: 16200 N·m
    Diameter: 500 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, S-1T
    S-1T-710

    Type: Disc
    Maximum Torque: 14455 N·m
    Diameter: 710 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, S-1T
    S-1T-630

    Type: Disc
    Maximum Torque: 12495 N·m
    Diameter: 630 mm

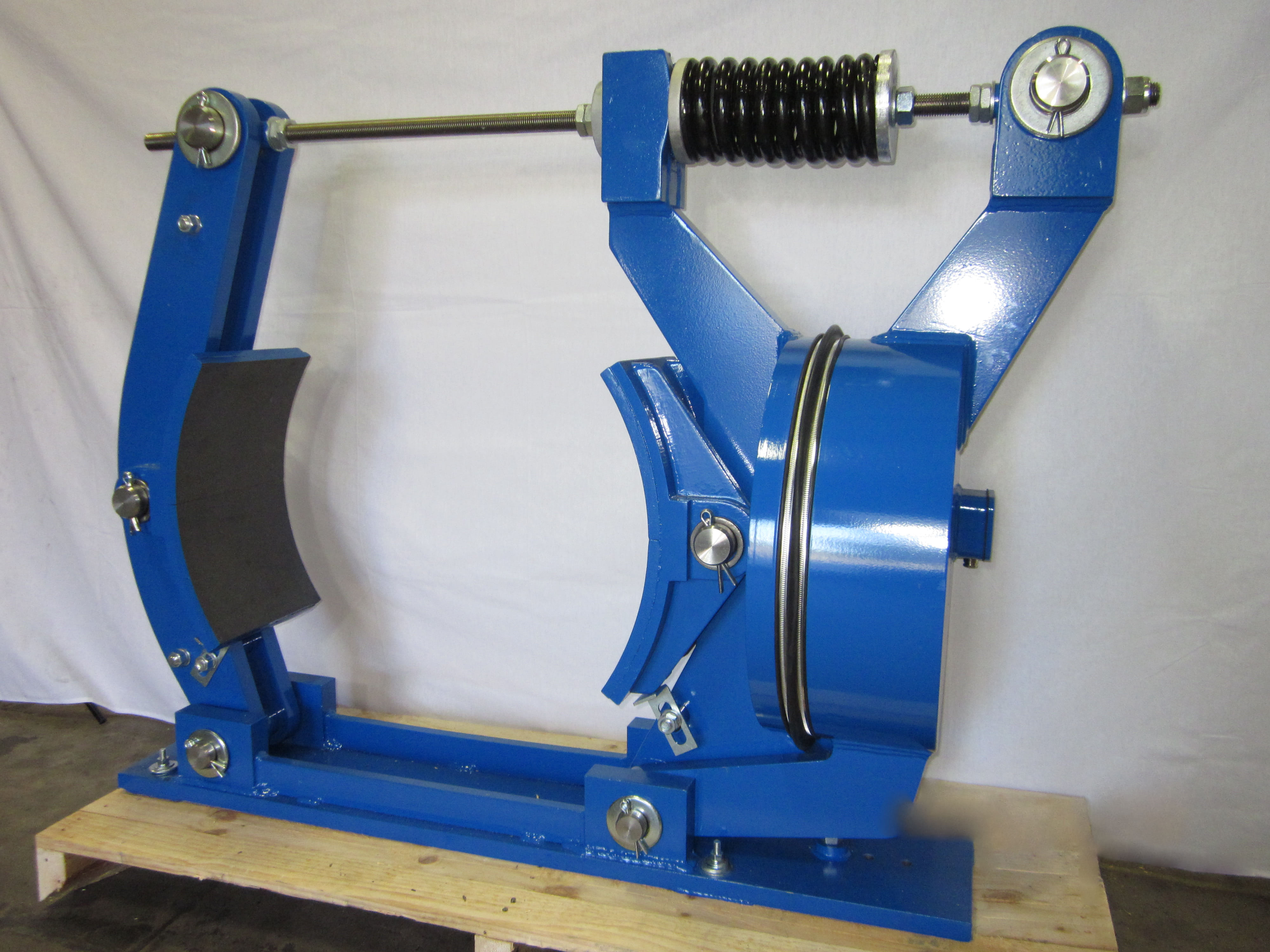

  • industrial electromagnetic drum brake, fail-safe drum brake, Antec LAM brake
    LAM 30″

    Type: Drum
    Maximum Torque: 12450 N·m
    Diameter: 762 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, S-1T
    S-1T-560

    Type: Disc
    Maximum Torque: 10780 N·m
    Diameter: 560 mm

  • electromagnetic drum brake, industrial drum brake, fail-safe drum brake, LDM drum brake
    LDM 710

    Type: Drum
    Maximum Torque: 9810 N·m
    Diameter: 710 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, S-1T
    S-1T-500

    Type: Disc
    Maximum Torque: 9310 N·m
    Diameter: 500 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, 3e
    3E – 995

    Type: Disc
    Maximum Torque: 6640 N·m
    Diameter: 995 mm

  • industrial electromagnetic drum brake, fail-safe drum brake, Antec LAM brake
    LAM 23″

    Type: Drum
    Maximum Torque: 5540 N·m
    Diameter: 584.2 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, 3e
    3E – 795

    Type: Disc
    Maximum Torque: 5060 N·m
    Diameter: 795 mm

  • electromagnetic drum brake, industrial drum brake, fail-safe drum brake, LDM drum brake
    LDM 630

    Type: Drum
    Maximum Torque: 4905 N·m
    Diameter: 630 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, 3e
    3E – 705

    Type: Disc
    Maximum Torque: 4420 N·m
    Diameter: 705 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, 3e
    3E – 625

    Type: Disc
    Maximum Torque: 3790 N·m
    Diameter: 625 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, 3e
    3E – 550

    Type: Disc
    Maximum Torque: 3250 N·m
    Diameter: 550 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, 3e
    3E – 495

    Type: Disc
    Maximum Torque: 2860 N·m
    Diameter: 495 mm

  • industrial electromagnetic drum brake, fail-safe drum brake, Antec LAM brake
    LAM 19″

    Type: Drum
    Maximum Torque: 2770 N·m
    Diameter: 482.6 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, 4e
    4E – 795

    Type: Disc
    Maximum Torque: 2740 N·m
    Diameter: 795 mm

  • electromagnetic drum brake, industrial drum brake, fail-safe drum brake, LDM drum brake
    LDM 500

    Type: Drum
    Maximum Torque: 2500 N·m
    Diameter: 500 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, 3e
    3E – 445

    Type: Disc
    Maximum Torque: 2480 N·m
    Diameter: 445 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, 4e
    4E – 705

    Type: Disc
    Maximum Torque: 2400 N·m
    Diameter: 705 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, 4e
    4E – 625

    Type: Disc
    Maximum Torque: 2060 N·m
    Diameter: 625 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, 4e
    4E – 550

    Type: Disc
    Maximum Torque: 1770 N·m
    Diameter: 550 mm

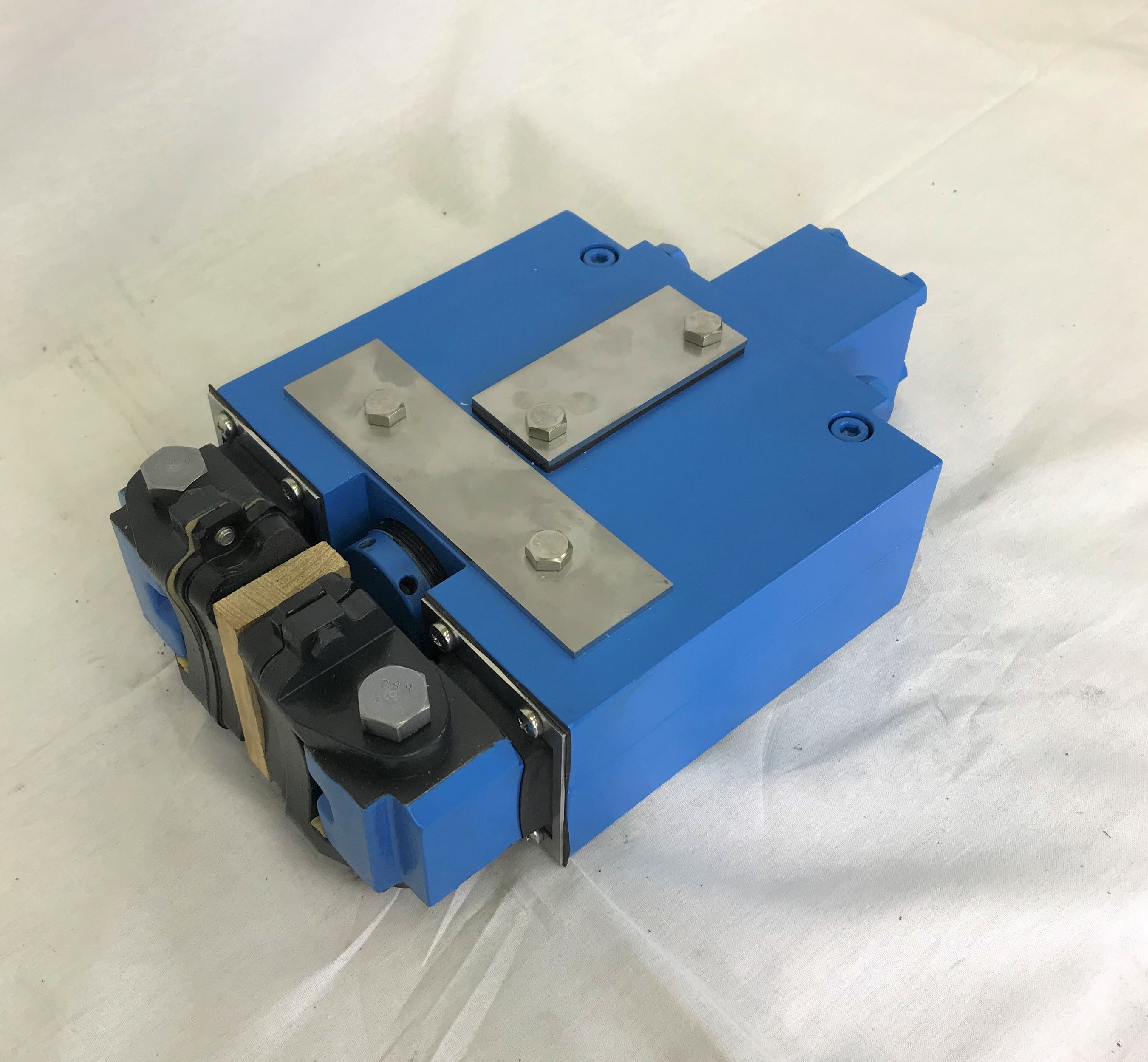

  • CB8-M-100-500

    Type: Disc
    Maximum Torque: 1580 N·m
    Diameter: 500 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, 4e
    4E – 495

    Type: Disc
    Maximum Torque: 1560 N·m
    Diameter: 495 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, 54E
    54E – 795

    Type: Disc
    Maximum Torque: 1460 N·m
    Diameter: 795 mm

  • electromagnetic drum brake, industrial drum brake, fail-safe drum brake, LDM drum brake
    LDM 400

    Type: Drum
    Maximum Torque: 1400 N·m
    Diameter: 400 mm

  • industrial electromagnetic drum brake, fail-safe drum brake, Antec LAM brake
    LAM 16″

    Type: Drum
    Maximum Torque: 1380 N·m
    Diameter: 406.4 mm

  • electromagnetic disc brake, industrial disc brake, fail-safe disc brake, 4e
    4E – 445

    Type: Disc
    Maximum Torque: 1350 N·m
    Diameter: 445 mm

  • CB8-M-100-400

    Type: Disc
    Maximum Torque: 1220 N·m
    Diameter: 400 mm

Commitment to service and support

Hindon is dedicated to providing comprehensive support for our products and the people who depend on them. From initial consultation to inspection, maintenance, and repair services, our goal is to provide the right equipment for your application and to keep your product in top shape for its full lifecycle. If you’re not sure which product is right for your application, call or chat with one of our sales engineers.
