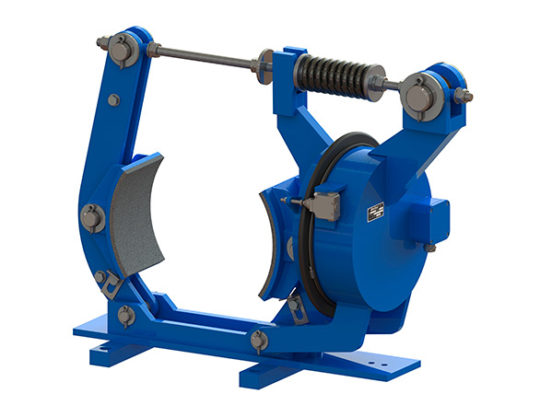

The LAM 16″ is a spring applied, electromagnetically released industrial drum brake.

This electromagnetic brake fits brake drums with dimensions in imperial units (inches) and is designed according to steel mill standards (AISE N.11-63.120). The LAM brake is therefore an ideal “bolt in” replacement when upgrading existing braking systems in a steel mill environment.

This brake is available in both 400 cycle/hour and 600 cycle/hour configurations. While commonly configured with shunts connected, this brake is also available in series connection.

Hindon provides comprehensive support for LAM brakes including repair services and full engineering, technical, and application support.

Click here to learn more about our full line of industrial brakes.

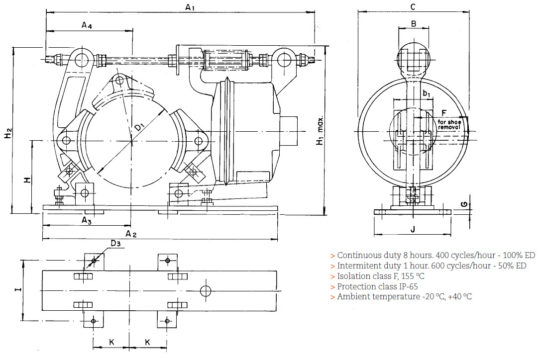

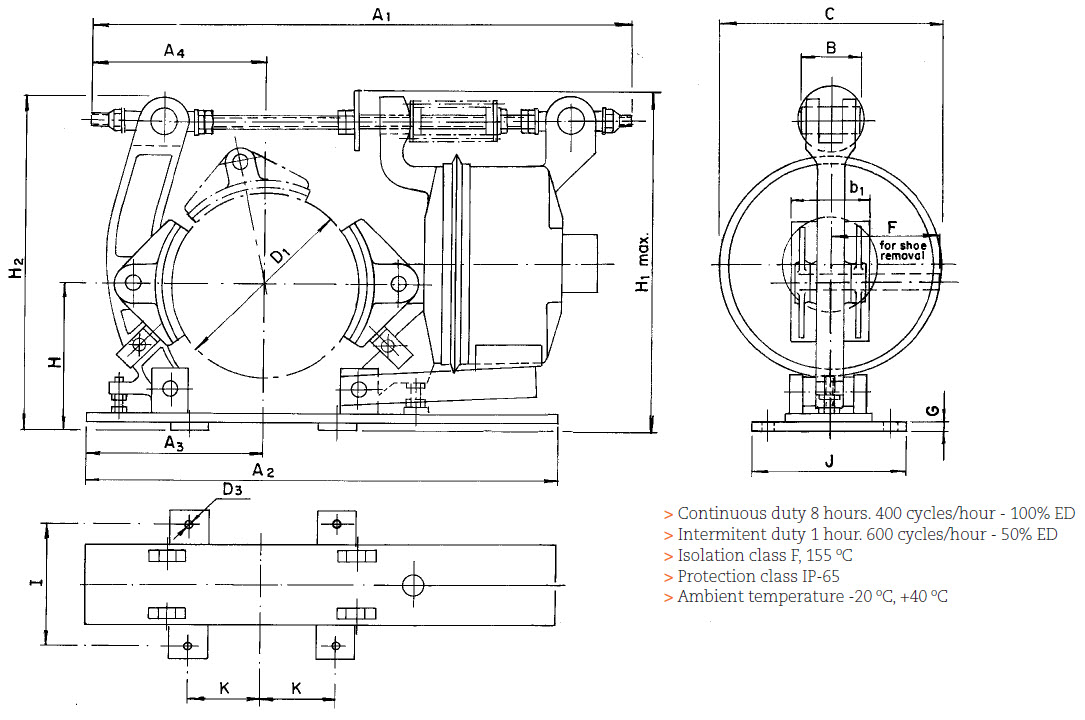

Get a Quote Download Diagram

Product Specifications

Name LAM 16″
Type Drum
Actuation Electromagnetic Solenoid Released
Disc Dia - A (mm) 406.4
Weight (kg) 205
F (mm) 210
G (mm) 34
J (mm) 330
Drum Dia (mm) 406
Torque (N-m)- Shunt 1 Hour Duty 1380
Torque (N-m)- 8 Hour Duty 1040
Power (W)- Shunt 1 Hour Duty 575
Power (W)- 8 Hour Duty 430
Drum Width (mm) 171
Shoe Width (mm) 165
A1 (mm) 890
A2 (mm) 800
A3 (mm) 310
A4 (mm) 295
B (mm) 70
C (mm) 395
D1 (mm) 406
D3 (mm) 27
H (mm) 308
H1 (mm) 735
H2 (mm) 730
I (mm) 273
K (mm) 190.5

industrial electromagnetic drum brake, fail-safe drum brake, Antec LAM brake
