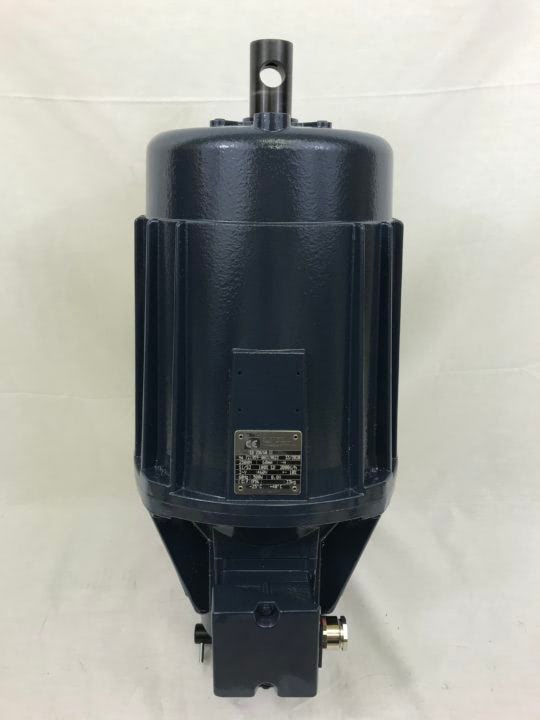

EB 250-60
Elhy Thruster
The EB (or Elhy) is an electrohydraulic thruster by EMG.
Thrusters are commonly used on thruster brakes, a type of industrial brake. Thruster brakes are fail-safe, meaning they are spring applied and use a thruster to release the brake. Thrusters work as follows: when supplied power, the thruster piston rod extends and the brake is released. If the thruster is turned off or power is lost, the piston rod retracts and the spring engages the brake.
Because of their unmatched safety and reliability, we use thruster disc and drum brakes in our industrial braking systems. Elhy thrusters are particularly well suited for use in applications with high duty cycle requirements.
We provide comprehensive support for Elhy thrusters. We stock commonly used EMG models, provide warrantied repair services, and provide full engineering and technical support.
Product Specifications
Name | EB 250-60 |
---|---|
Rated Stroke (mm) | 60 |
Rated Actuating Force (N) | 2500 |
Power Consumption (W) | 0.5 |
Current Input (A) | 0.7 |
Volume of Operating Fluid (L) | 9 |
Weight with Hydraulic Fluid (kg) | 32.8 |
s (mm) | 60 |
h6 (mm) | 40 |
b2 (mm) | 90 |
b3 (mm) | 35.5 |
b4 (mm) | 250 |
b5 (mm) | 110 |
b6 (mm) | 265 |
b7 (mm) | 100 |
d1 (mm) | 20.2 |
d2 (mm) | 20 |
h1 (mm) | 549 |
h2 (mm) | 30 |
h3 (mm) | 25 |
h4 (mm) | 36 |
h5 (mm) | 25 |
d3 (mm) | 20 |
b8 (mm) | 114 |
h6 (mm) | 28 |
Commitment to service and support
Hindon is dedicated to providing comprehensive support for our products and the people who depend on them. From initial consultation to inspection, maintenance, and repair services, our goal is to provide the right equipment for your application and to keep your product in top shape for its full lifecycle. If you’re not sure which product is right for your application, call or chat with one of our sales engineers.
