The ED (or Eldro) is an electrohydraulic thruster by EMG.

Thrusters are commonly used on thruster brakes, a type of industrial brake. Thruster brakes are fail-safe, meaning they are spring applied and use a thruster to release the brake. Thrusters work as follows: when supplied power, the thruster piston rod extends and the brake is released. If the thruster is turned off or power is lost, the piston rod retracts and the spring engages the brake.

Because of their unmatched safety and reliability, we use thruster disc and drum brakes in our industrial braking systems. Eldro thrusters are particularly well suited for use in applications with high duty cycle requirements.

We provide comprehensive support for Eldro thrusters. We stock commonly used EMG models, provide warrantied repair services, and provide full engineering and technical support.

Get a Quote Download Diagram

Product Specifications

Name ED 301/6
Stroke (mm) 60
Lifting Force (N) 3000
Thrust (N*cm) 18000
Power Consumption (W) 500
Current Consumption at 400 V/50 Hz (A) 1.4
Duty Rating at S3 - 60% Duty Cycle 1500
Weight (kg) 40
A (mm) 645
C (mm) 38
D (mm) 25
E (mm) 25
F (mm) 40
G (mm) 25
H (mm) 35
K (mm) 240
L (mm) 112
M (mm) 90
N (mm) 40
O (mm) 260
P (mm) 25
R (mm) -

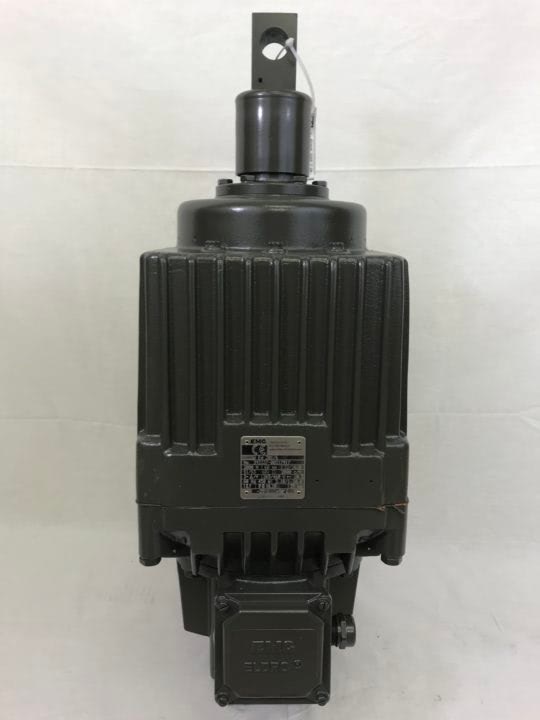

ED 301/6, ELDRO electrohydraulic thruster for industrial brake

Eldro diagram for EMG Eldro electrohydraulic thruster
