DBF 145.7 1250mm
Industrial Disc Brake

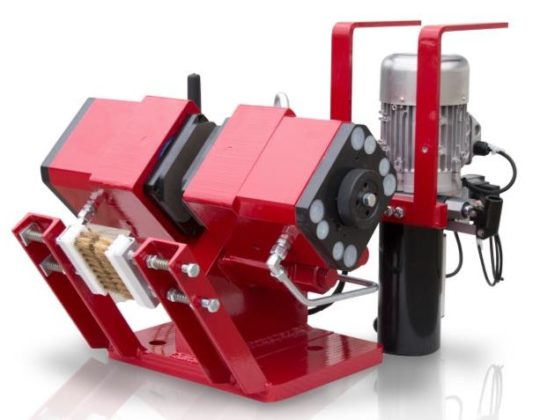

The DBF 145 is a spring applied, hydraulically released, industrial fixed caliper disc brake.
Advantages of this industrial brake include its fast response time and its adjustable air-gap, which allows you to fine-tune your braking process by providing adjustable torque output.
When compared to a comparable floating caliper brake, fixed caliper brakes like the DBF are ideal for applications with minimal space constraints. In situations where lateral space is limited, consider a comparable floating caliper model, like the DBF S product line.
Traditionally, the DBF is commonly used on large hoists and cranes in ports, steel mills, and mining applications, but it is highly versatile and can be used as a safety or emergency brake in a wide range of demanding applications.
Hindon provides comprehensive service and support for DBF brakes, including technical/application engineering, as well as repair services.
Click here to learn more about our full line of industrial brakes.
|Name||DBF 145.7 1250mm|
|d2 - Disc Diameter (mm)||1250|
|Torque Max. (N-m)||72540|
|Torque Min. (N-m)||63180|
|Fa - Clamping Force at c = 1mm (N)||155000|
|Fa - Clamping Force at c = 2mm (N)||145000|
|Fa - Clamping Force at c = 3mm (N)||135000|
|Release Pressure (bar)||240|
|Tightening Torque (N-m)||10.9 - 3900|
|d1 - Friction Diameter (mm)||1170|
|d4 - Hub Outside Diameter (mm)||1000|
|Air Gap - Adjustable (mm)||1-3|
|Release Time (s)||1-2.5|
|Theoretical Resetting Time (s)||~0.2|
|Pad Surface (cm2)||160|
|Maximum Pressure (bar)||250|
|Oil Volume (l)||0.24|
|Oil Volume at 2mm Working Stroke (l)||0.04|
|Screw Size||M36 - 8.8/10.9|
|Pipe Dimensions||G 3/8"; Pipe ø 12mm x 1.5mm thick|
|Ambient Temperature (degrees C)||-20 to 60|
