Advantages of this industrial brake include its fast response time, its very high max torque output, and its adjustable air-gap, which allows you to fine-tune your braking process by providing adjustable torque output. Its high temperature load capacity also makes it a great brake for high torque emergency stops.
When compared to a comparable floating caliper brake, fixed caliper brakes like the DBF are ideal for applications with minimal space constraints. In situations where lateral space is limited, consider a comparable floating caliper model, like the DBF S product line.
Traditionally, the DBF is commonly used on large hoists and cranes in ports, steel mills, and mining applications, but it is highly versatile and can be used as a safety or emergency brake in a wide range of demanding applications.
Hindon provides comprehensive service and support for DBF brakes, including technical/application engineering, as well as repair services.
Click here to learn more about our full line of industrial brakes.

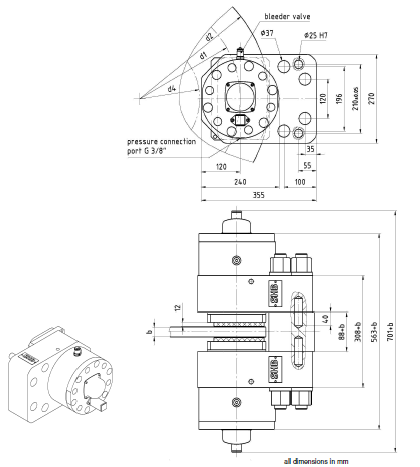

|Name||DBF 170.2 1300mm|
|d2 - Disc Diameter (mm)||1300|
|Torque Max. (N-m)||76160|
|Torque Min. (N-m)||58240|
|Fa - Clamping Force at c = 1mm (N)||170000|
|Fa - Clamping Force at c = 2mm (N)||150000|
|Fa - Clamping Force at c = 3mm (N)||130000|
|Release Pressure (bar)||190|
|Tightening Torque (N-m)||8.8 - 2600|
|d1 - Friction Diameter (mm)||1120|
|d4 - Hub Outside Diameter (mm)||870|
|Air Gap - Adjustable (mm)||1-3|
|Release Time (s)||1-2.5|
|Theoretical Resetting Time (s)||~0.2|
|Pad Surface (cm2)||366|
|Maximum Pressure (bar)||250|
|Oil Volume (l)||0.39|
|Oil Volume at 2mm Working Stroke (l)||0.06|
|Screw Size||M36 - 8.8/10.9|
|Pipe Dimensions||G 3/8"; Pipe ø 12mm x 1.5mm thick|
|Ambient Temperature (degrees C)||-20 to 60|
