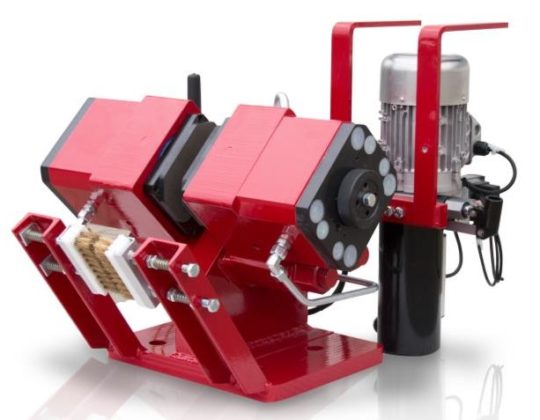

The DBF disc brake is a spring applied, hydraulically released, heavy duty industrial fixed caliper disc brake.
Advantages of this industrial brake include its fast response time, its high torque output, and its ability to produce a range of torque values with its externally adjustable air-gap.
This hydraulic disc brake is used primarily in holding and emergency stop applications. As a safety brake, it is installed and designed for braking on the output shaft.
|Name||DBF 60.1 800mm|
|d2 - Disc Diameter (mm)||800|
|Torque Max. (N-m)||3124|
|Torque Min. (N-m)||2556|
|Fa - Clamping Force at c = 1mm (N)||11000|
|Fa - Clamping Force at c = 2mm (N)||10000|
|Fa - Clamping Force at c = 3mm (N)||9000|
|Release Pressure (bar)||30|
|Tightening Torque (N-m)||8.8 - 500|
|d1 - Friction Diameter (mm)||710|
|d4 - Hub Outside Diameter (mm)||540|
|Air Gap - Adjustable (mm)||1-3|
|Release Time (s)||1-2.5|
|Theoretical Resetting Time (s)||~0.2|
|Pad Surface (cm2)||126|
|Maximum Pressure (bar)||120|
|Oil Volume (l)||0.24|
|Oil Volume at 2mm Working Stroke (l)||0.04|
|Screw Size||M24 - 8.8/10.9|
|Pipe Dimensions||G 3/8"; Pipe ø 12mm x 1.5mm thick|
|Ambient Temperature (degrees C)||-20 to 60|
