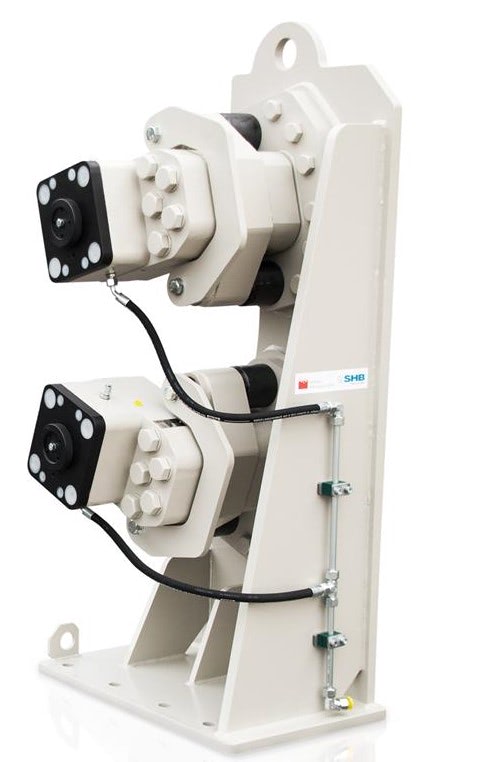

The DBF S disc brake is a spring applied, hydraulically released, heavy duty industrial floating caliper disc brake.
Advantages of this industrial brake include its fast response time, its high torque output, and its ability to produce a range of torque values with its externally adjustable air-gap.
This hydraulic disc brake is used primarily in holding and emergency stop applications. As a safety brake, it is installed and designed for braking on the output shaft.

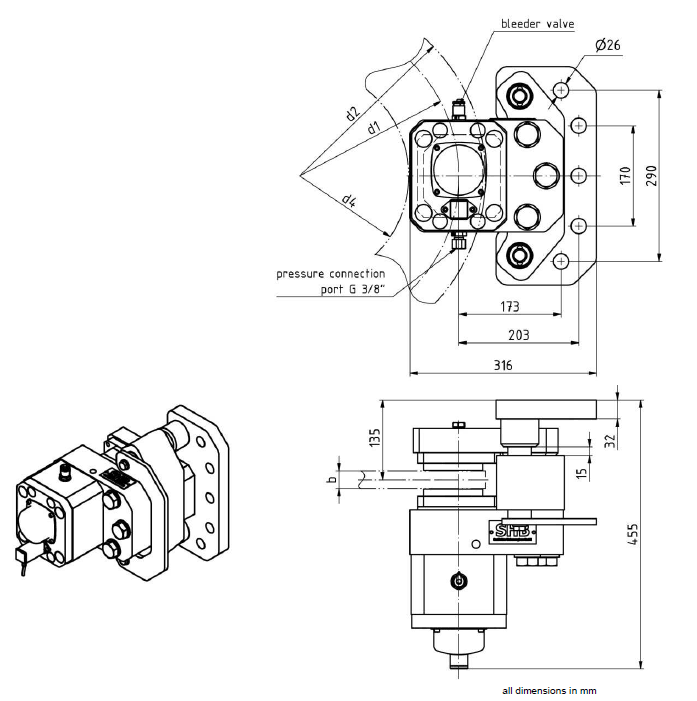

|Name||DBF 60.1 S 1250mm|
|d2 - Disc Diameter (mm)||1250|
|Torque Max. (N-m)||5104|
|Torque Min. (N-m)||4176|
|Fa - Clamping Force at c = 1mm (N)||11000|
|Fa - Clamping Force at c = 2mm (N)||10000|
|Fa - Clamping Force at c = 3mm (N)||9000|
|Release Pressure (bar)||30|
|d1 - Friction Diameter (mm)||1160|
|d4 - Hub Outside Diameter (mm)||990|
|Air Gap - Adjustable (mm)||1-3|
|Release Time (s)||1-2.5|
|Theoretical Resetting Time (s)||~0.2|
|Pad Surface (cm2)||126|
|Maximum Pressure (bar)||120|
|Oil Volume (l)||0.24|
|Oil Volume at 2mm Working Stroke (l)||0.04|
|Pipe Dimensions||G 3/8"; Pipe ø 12mm x 1.5mm thick|
|Ambient Temperature (degrees C)||-20 to 60|
