The NHC 1415 is a medium torque spring applied, hydraulically released, industrial disc brake.

This industrial brake is ideal for use as an emergency brake, where it is installed on an output shaft connected drive component, due to its fast response time and ability to handle higher rubbing speeds. It’s also commonly used as a holding brake where it can be a cost effective solution that requires minimal maintenance.

The NHC is a floating caliper model, meaning it uses a single spring configuration. When compared to a comparable fixed caliper brake, which uses a dual spring configuration, floating caliper brakes like the NHC are ideal for applications with lateral space constraints. In situations where lateral space is not constrained, consider a comparable fixed caliper model like an NHCD brake.

This versatile fail-safe brake is used in a wide range of industrial applications including on hoists, cranes, and winches in ports, steel mills, and mining applications. It is also used on other types of material handling equipment, for instance in the pulp and paper industry.

Hindon provides full service and support for NHC brakes, including helping you determine if this brake model is the best and most cost effective solution for your application. We also provide comprehensive brake repair services.

Click here to learn more about our full line of industrial brakes or give us a call or email to discuss your unique industrial braking application.

Get a Quote Download Diagram

Product Specifications

NameNHC 1415 1500mm
ActuationHydraulically Released
d2 - Disc Diameter (mm)1500
Torque (N-m)78000
Clamping Force (N)150000
Min Release Pressure (MPa)21
Max Release Pressure (MPa)21
Release Stroke (mm)0.5 (each side)
Oil Volume (cm3)113
Pad Surface (cm2)600 (each side)
Friction Coefficient0.4
Braking Force (N)120000
Weight (Kg)200
  • Brake Open Indicator;
  • Pad Wear Indicator;
  • Sintered or Organic Linings;
  • Special Painting

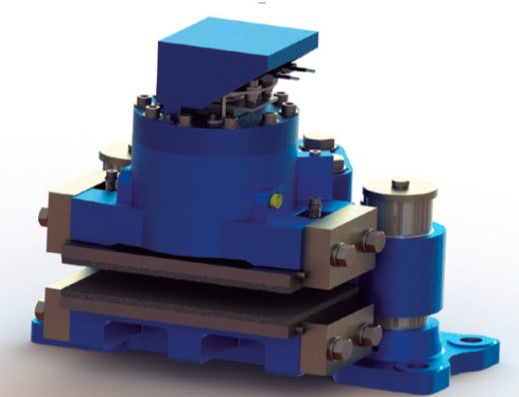

Fail-safe Hydraulic Brake, Floating Caliper Disc Brake, Mono Spring Applied Hydraulic Brake, Industrial Brake Model NHC 1407-1411-1413-1415

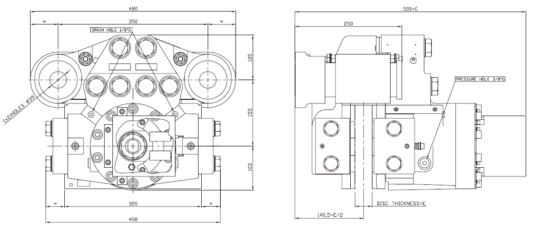

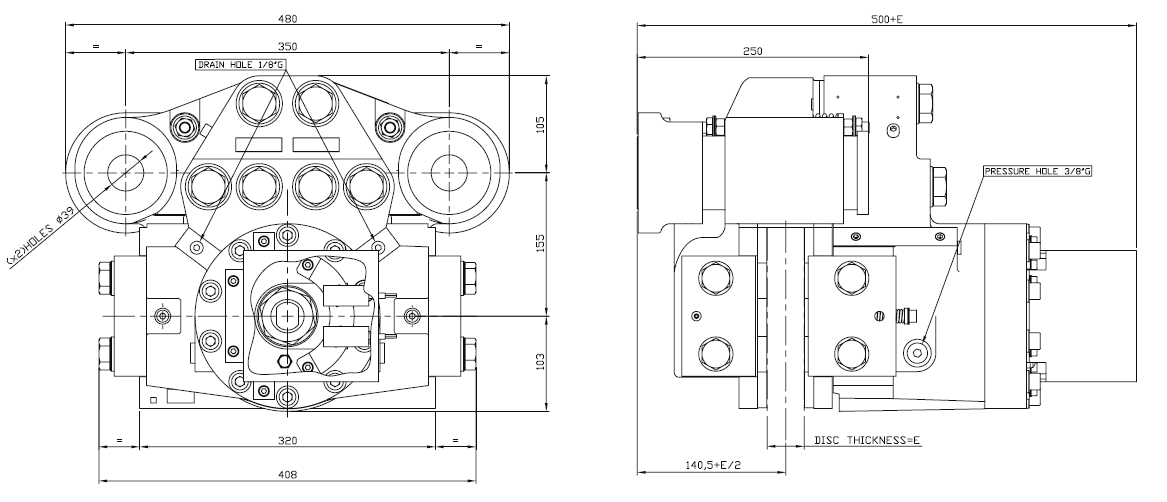

Diagram for Industrial Brakes NHC 1407-1411-1413-1415
