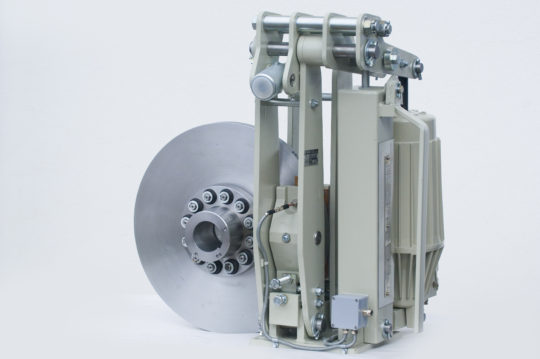

The RST disc brake is a spring applied, electrohydraulic thruster released, heavy duty industrial disc brake.

Advantages of this industrial brake include its ability to operate reliably at high duty cycles and ability to produce higher braking torques.

This thruster brake is often used as a service brake in a wide range of industries including on cranes (especially hoists with high speeds), overland conveyors, mining equipment, and in steel mills.

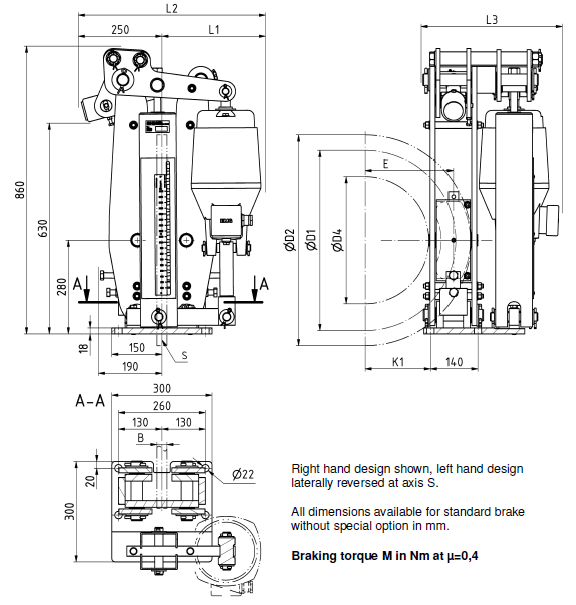

Get a Quote Download Diagram

Product Specifications

Name RST2/800/201/6
Type Disc
Actuation Electrohydraulic Thruster Released
øD2 - Disc Diameter (mm) 800
øD1 - Theoretical Friction Diameter (mm) 709
øD4 - Max Coupling Diameter (mm) 540
K1 (mm) 280
Thruster ED 201/6
Brake Torque min. (N-m) 2080
Brake Torque max. (N-m) 8300
L1 (mm) 350
L2 (mm) 600
L3 (mm) 430
Weight without Thruster (kg) 130
