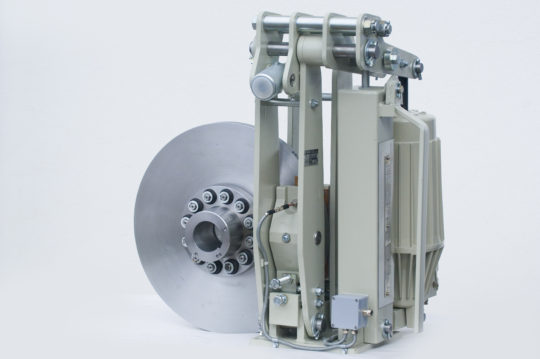

The SST disc brake is a spring applied, electrohydraulic thruster released, heavy duty industrial disc brake.

Advantages of this industrial brake include its ability to operate reliably at high duty cycles and wide ranging torque adjustability.

This thruster brake is often used as a service brake in a wide range of industries including on cranes (especially hoists with high speeds), overland conveyors, mining equipment, and in steel mills.

Get a Quote Download Diagram

Product Specifications

NameSST10/280/12/4
TypeDisc
ActuationElectrohydraulic Thruster Released
øD2 - Disc Diameter (mm)280
øD1 - Theoretical Friction Diameter (mm)225
øD4 - Max Coupling Diameter (mm)130
K1 (mm)75
ThrusterED 12/4
Brake Torque min. (N-m)35
Brake Torque max. (N-m)140
L1 (mm)140
L2 (mm)315
L3 (mm)310
E (mm)112
Weight without Thruster (kg)30

industrial brake, industrial disc brake, fail-safe disc brake, thruster disc brake, SST10 brake

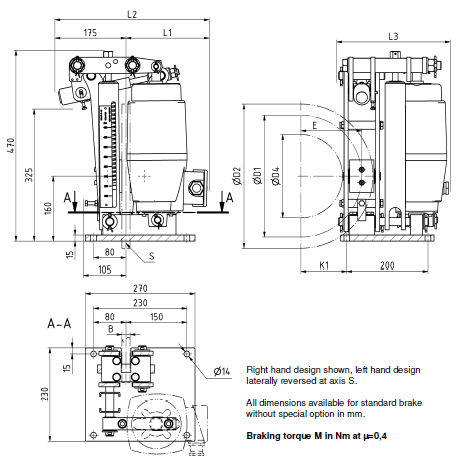

sst10_diagram
