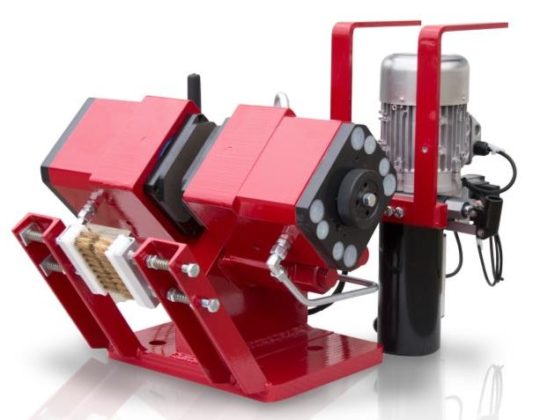

The SRZFH-2 disc brake is a compact spring applied, hydraulically released, fixed caliper industrial disc brake.

This hydraulic disc brake is often used as an emergency e-stop or holding brake in situations with relatively low torque requirements.

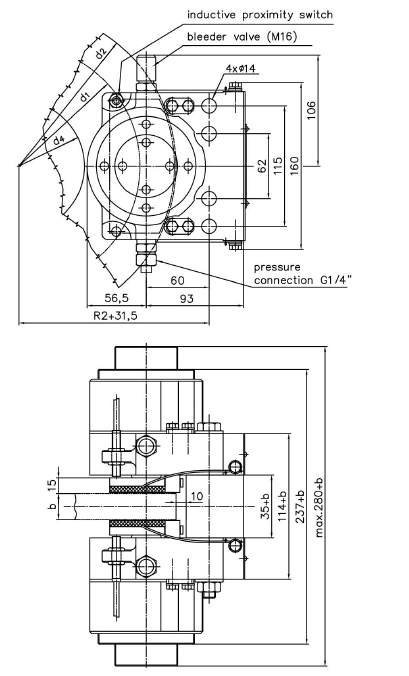

Get a Quote Download Diagram

Product Specifications

NameSZRFH-2 250mm 2.4kN
ActuationHydraulically Released
d2 - Disc Diameter (mm)250
Torque Max. (N-m)174
Fa - Clamping Force at c = 1mm (N)2400
Release Pressure (bar)50
Tightening Torque10.9 - 120 Nm
d1 - Friction Diameter (mm)181
d4 - Hub Outside Diameter (mm)75
Air Gap - Adjustable (mm).8-1
Release Time (s)1-2.5
Theoretical Resetting Time (s)~0.2
Pad Surface (cm2)160
Maximum Pressure (bar)250
Oil Volume (l)0.24
Oil Volume at 2mm Working Stroke (l)0.04
Screw SizeM36 - 8.8/10.9
Pipe DimensionsG 3/8"; Pipe ø 12mm x 1.5mm thick
Ambient Temperature (degrees C)-20 to 60
Weight (kg)160
Friction Coefficient0.4
