The NAT is a spring applied, electrohydraulic thruster released, industrial drum brake.

This thruster drum brake fits brake drums with dimensions in imperial units (inches) and is designed according to steel mill standards (AISE Standard No. 11). Because of this, the NAT brake is an ideal “bolt-in” replacement for many older steel mill brakes. Braking torque is adjustable, enabling fine tuning when upgrading an existing braking system.

Hindon provides full support for NAT brakes including repair services and full engineering, technical, and application support.

We also support, stock, and repair the TH-I-256 thruster used to actuate this brake.

Click here to learn more about our full line of industrial brakes used in our industrial braking systems.

Get a Quote Download Diagram

Product Specifications

Name NAT/10”/I-256
Type Drum
Actuation Electrohydraulic Thruster Released
D1 10
Thruster I-256
TQMin (N-m) 168
TQMax (N-m) 335
Weight (Kg) 38
B2 (mm) 95
B1 (mm) 90
D1 (mm) 254
D3 (mm) 17.5
H3 (mm) 213
I (mm) 159
K (mm) 102
A1 (mm) 710
A2 (mm) 580
A3 (mm) 220
A4 (mm) 221
B (mm) 107
C (mm) 160
F (mm) 130
G (mm) 19
H1 (mm) 446
H2 (mm) 436
J (mm) 200
Friction Coefficient 0.4

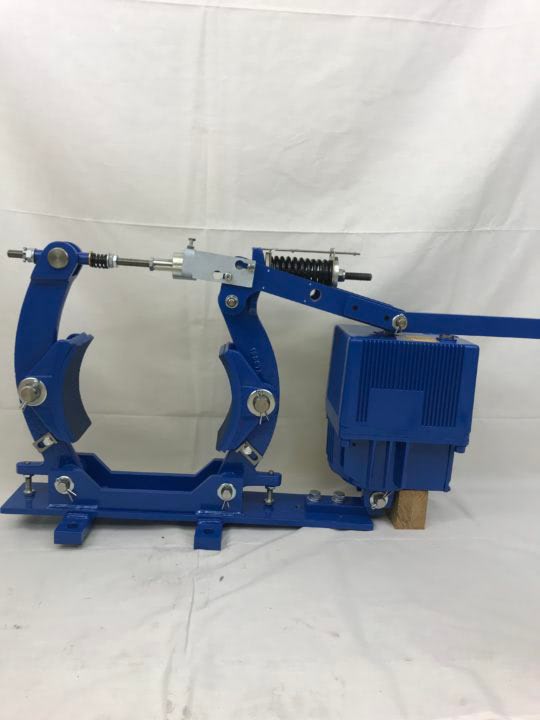

NAT10-TH-I-56 thruster drum brake, steel mill crane brake

nat-diagram
