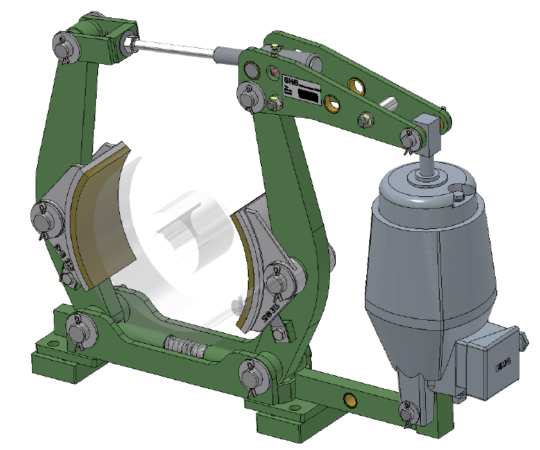

The RTC drum brake is a spring applied, electrohydraulic thruster released, industrial drum brake.

This thruster drum brake is foot mounted and has the torque spring located inside the release thruster, meaning the torque spring is non-adjustable (tamper proof).

This drum brake is ideal for use in situations where adjustable torque is not needed and where a tamper proof torque spring eliminates the possibility of an accidental change to the brake’s torque setting.

Get a Quote Download Diagram

Product Specifications

NameRTC710/3000-60/C-2950
TypeDrum
ActuationElectrohydraulic Thruster Released
D1 (mm)710
Thruster3000-60
C-Spring (N)2950
Brake Torque (N-m)8990
A1 (mm)530
A2 (mm)955
B (mm)265
C (mm)1100
B1 (mm)265
B2 (mm)255
B3 (mm)240
D3 (mm)27
H (mm)460
I (mm)190
K (mm)450
M (mm)180
N (mm)320
P (mm)10
Q (mm)22
T (mm)320
Weight without Thruster (kg)234
Friction Coefficient0.4

industrial drum brake, thruster drum brake, fail-safe brake, NDT brake

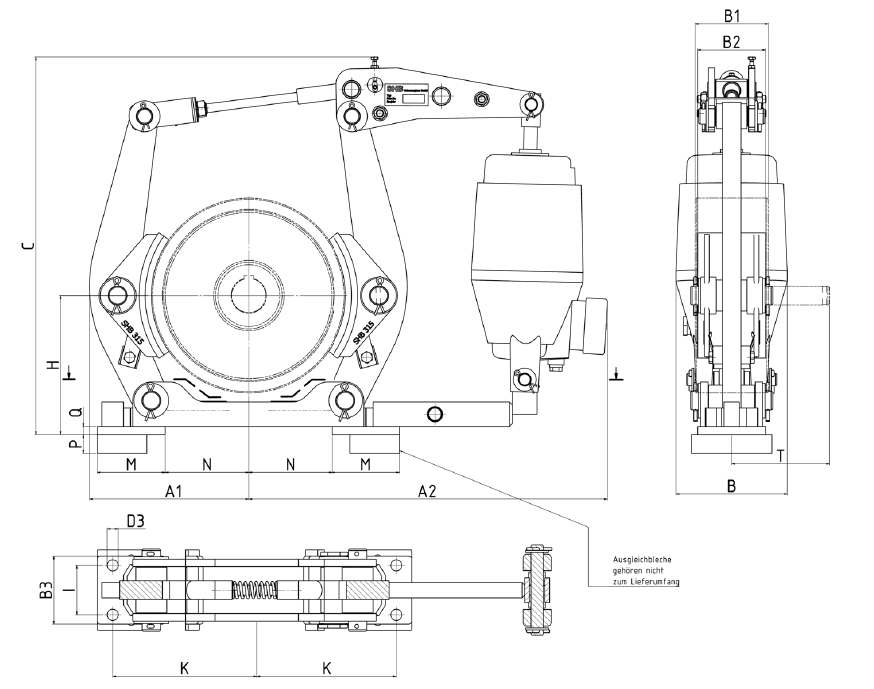

rtc-diagram
