TE-I 19/201/6, TE-I Drum Brakes, fail-safe, thruster released, USA dimensions

Get a Quote Download Diagram

Product Specifications

NameTE-I 19/201/6
TypeDrum
ActuationElectrohydraulic Thruster Released
Weight130 kg
Brake Torque min. (N-m)200
Brake Torque max. (N-m)5400
Torque Range200 to 5400 N·m
Brake TypeTE-I 19"
Thrustor SizesEd 201/6
Thrustor Sizes EBEB 2000-60

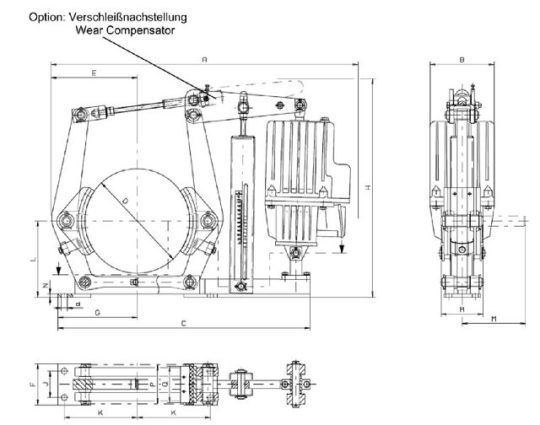

D2 - Outer Disc Diameter2482
A1251 mm
B240 mm
C1025 mm
D482 mm
E385 mm
F419 mm
G292 mm
H870 mm
J2330 mm
K2235 mm
L337 mm
M242 mm
N13 mm
P222 mm
Q216 mm
R202 mm
Compensator Option
  • No Preference
  • With lining wear compensator
  • Without lining wear compensator
