Alternate foot pattern rotary electric vibrator by Invicta Vibrators. Designed to match MVSI 18-19700, MM18-19700, and VV81B/4 bolt patterns providing convenient interchangeability.

This 4 pole industrial vibrator operates at 1800 RPM (nominal) in a 60 Hz Environment.

This model is often used on dewatering equipment in fluid recovery systems, for instance in horizontal directional drilling applications. This model is also often used as a flow aid, for instance on bin dischargers, in situations where more force output or HP is required due to the need to handle larger sized or wetter materials.

Get a Quote Download Diagram

Product Specifications

NameIBL 60-105/4
TypeIndustrial Electric
Product SeriesIBL
MountBase Mounted
Speed4 Pole / 1728 RPM - 60Hz
Weight (lbs)807.4
Centrifugal Force (lbs)23100.0
Working Moment (in·lb - (x2))546.0
Input Watts8410
Output Watts7750
Full Load Current at 460V, 60Hz (A)11.3
Starting Current at 460V, 60Hz (A)165.0
H.P.10.38
A (in)33.31
B (in)12.60
C (in)18.11
D (in)9.84
E (in)14.96
F (in)19.29
G (in)9.21
H (in)2.76
J (in)6 x 1.535
K (in)18.90
L (in)18.90
M (in)7.40
NM32x1.5-6H

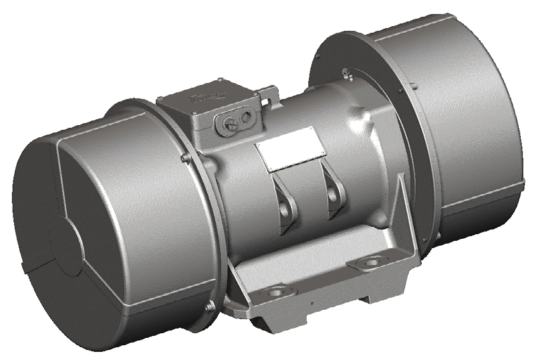

Rendering of IBL product line (2 pole). Replacement for MM18 and MSVI 18 models.

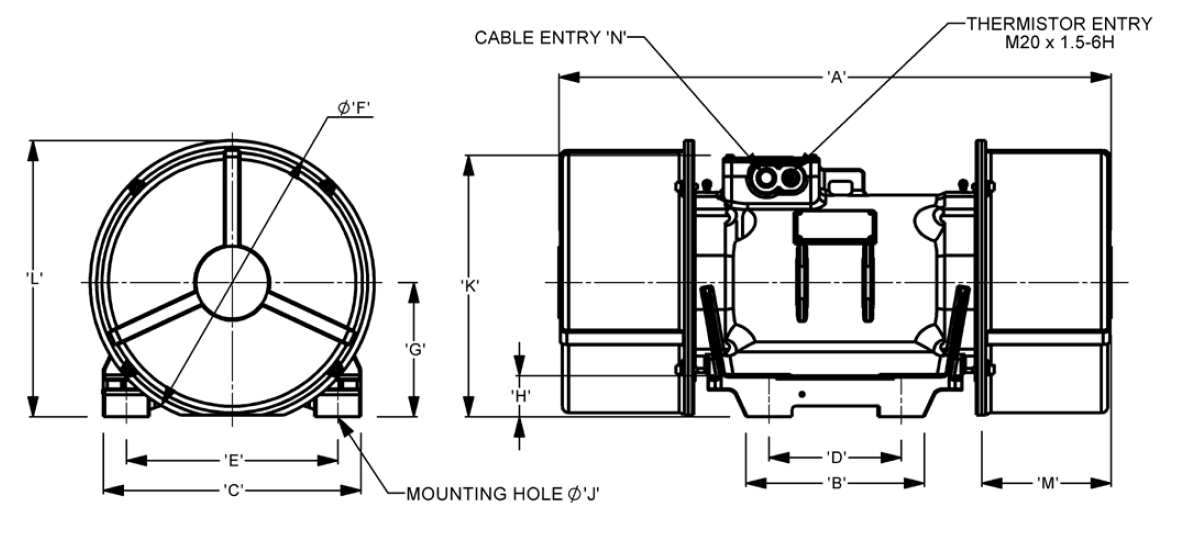

Dimensional diagram for IBL product line (2 pole). Replacement for MSVI 18 and MM18 models.
