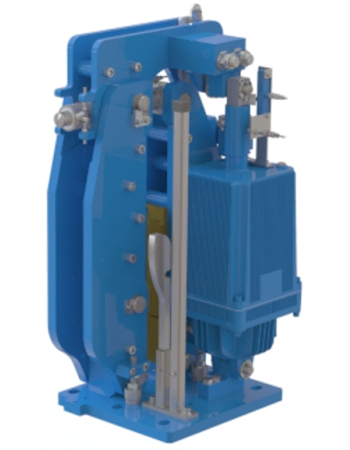

The FDA-92 is a high torque heavy duty thruster disc brake. It is spring applied and uses an electrohydraulic thruster (TH-III-3006).

Advantages of this brake include its high torque capacity and easily adjustable braking torque.

This thruster brake is often used as a service brake in a wide range of industries including on high speed, high capacity container cranes (main hoist), downhill and overland conveyors, mining winches, and steel mill applications.

Hindon provides comprehensive support for FDA-92 models including brake repair services, thruster repair services, and full engineering and technical support.

Click here to see our full line of industrial brakes.

Get a Quote Download Diagram

Product Specifications

NameFDA-92/800/TH-III-3006
TypeDisc
ActuationElectrohydraulic Thruster Released
øD1 - Disc Diameter (mm)800
ThrusterTH-III-3006
Torque Max (N-m)23993
øD2 - Hub (mm)480
øD3 - Disc Center (mm)245
øD4 - Center to Edge (mm)666
Friction Coefficient0.4

thruster brake, industrial disc brake, fail-safe brake, FDA-92

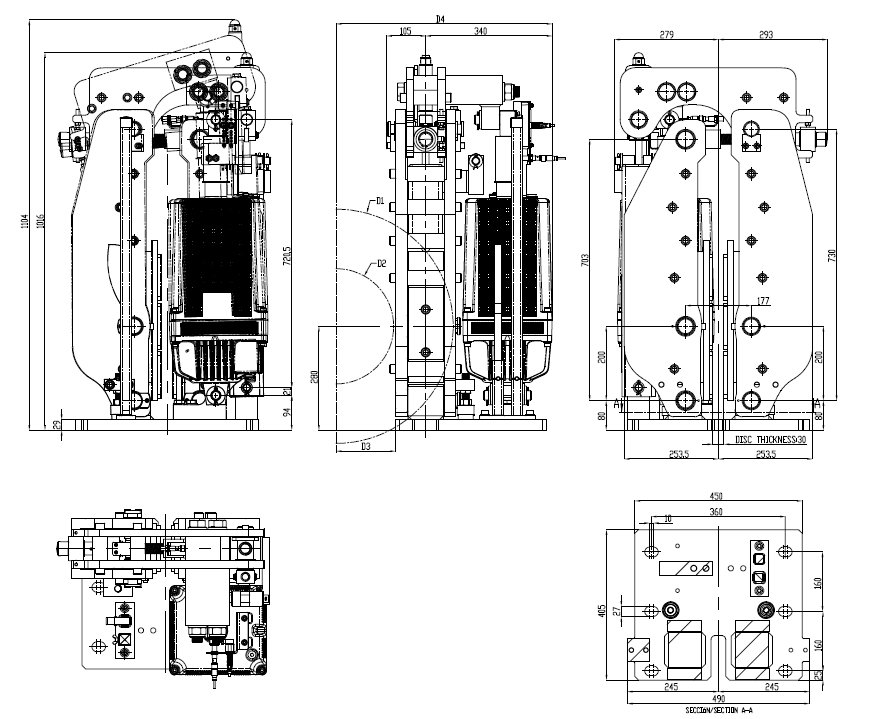

fda-92-diagram
