Pneumatic fail-safe brakes are spring applied and use pneumatic pressure to hold open the brake. If the brake is turned off or power is lost, the spring engages the brake.

We incorporate both pneumatic disc and drum brakes into our industrial braking systems. We also provide comprehensive repair services for these brakes.

Advantages:

Pneumatic brakes can provide a very cost-effective solution in certain applications. They are typically used as holding or service brakes in situations where compressed air is readily available and the torque requirement is relatively low.

Disadvantages:

Since system pneumatic pressure is relatively low (normally much lower than hydraulic pressure), pneumatic brakes aren’t able to generate as much torque as our hydraulic brakes, thruster brakes, or electromagnetic brakes. Additionally, if compressed air isn’t already available, it likely makes sense to explore other braking solutions that don’t require installing pneumatics.

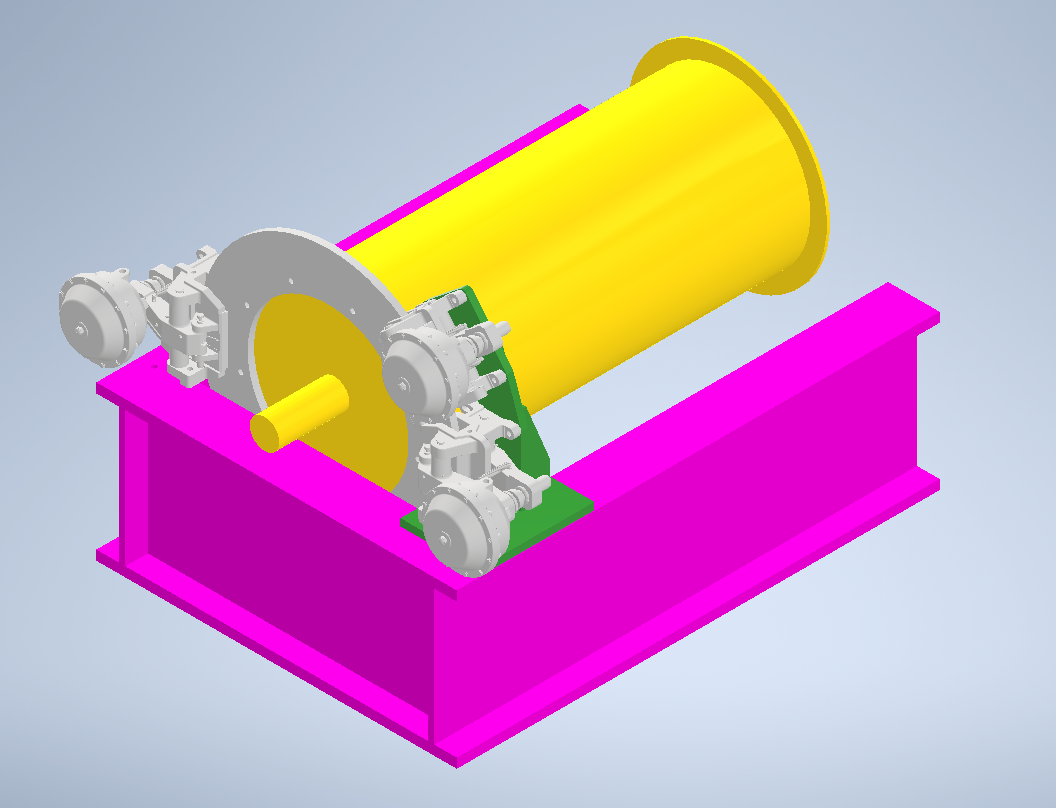

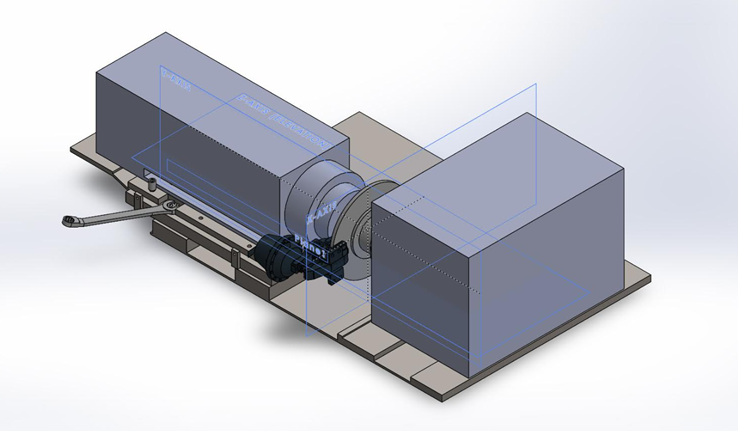

Featured Projects

Products

31 results

Filter

Name

Type

Actuation

Maximum Torque (N·m)

Diameter (mm)

View as:
31 results
  • Tpi 710/100

    Type: Drum
    Maximum Torque: 9400 N·m
    Diameter: 710 mm

  • Tpi 630/100

    Type: Drum
    Maximum Torque: 8200 N·m
    Diameter: 630 mm

  • Tpi 710/80

    Type: Drum
    Maximum Torque: 6300 N·m
    Diameter: 710 mm

  • Tpi 630/80

    Type: Drum
    Maximum Torque: 5500 N·m
    Diameter: 630 mm

  • Tpi 500/80

    Type: Drum
    Maximum Torque: 5400 N·m
    Diameter: 500 mm

  • Tpi 710/63

    Type: Drum
    Maximum Torque: 3800 N·m
    Diameter: 710 mm

  • Tpi 500/63

    Type: Drum
    Maximum Torque: 3400 N·m
    Diameter: 500 mm

  • Tpi 630/63

    Type: Drum
    Maximum Torque: 3300 N·m
    Diameter: 630 mm

  • Tpi 400/63

    Type: Drum
    Maximum Torque: 2750 N·m
    Diameter: 400 mm

  • Tpi 500/50

    Type: Drum
    Maximum Torque: 2200 N·m
    Diameter: 500 mm

  • Tpi 400/50

    Type: Drum
    Maximum Torque: 1800 N·m
    Diameter: 400 mm

  • Tpi 315/50

    Type: Drum
    Maximum Torque: 1700 N·m
    Diameter: 315 mm

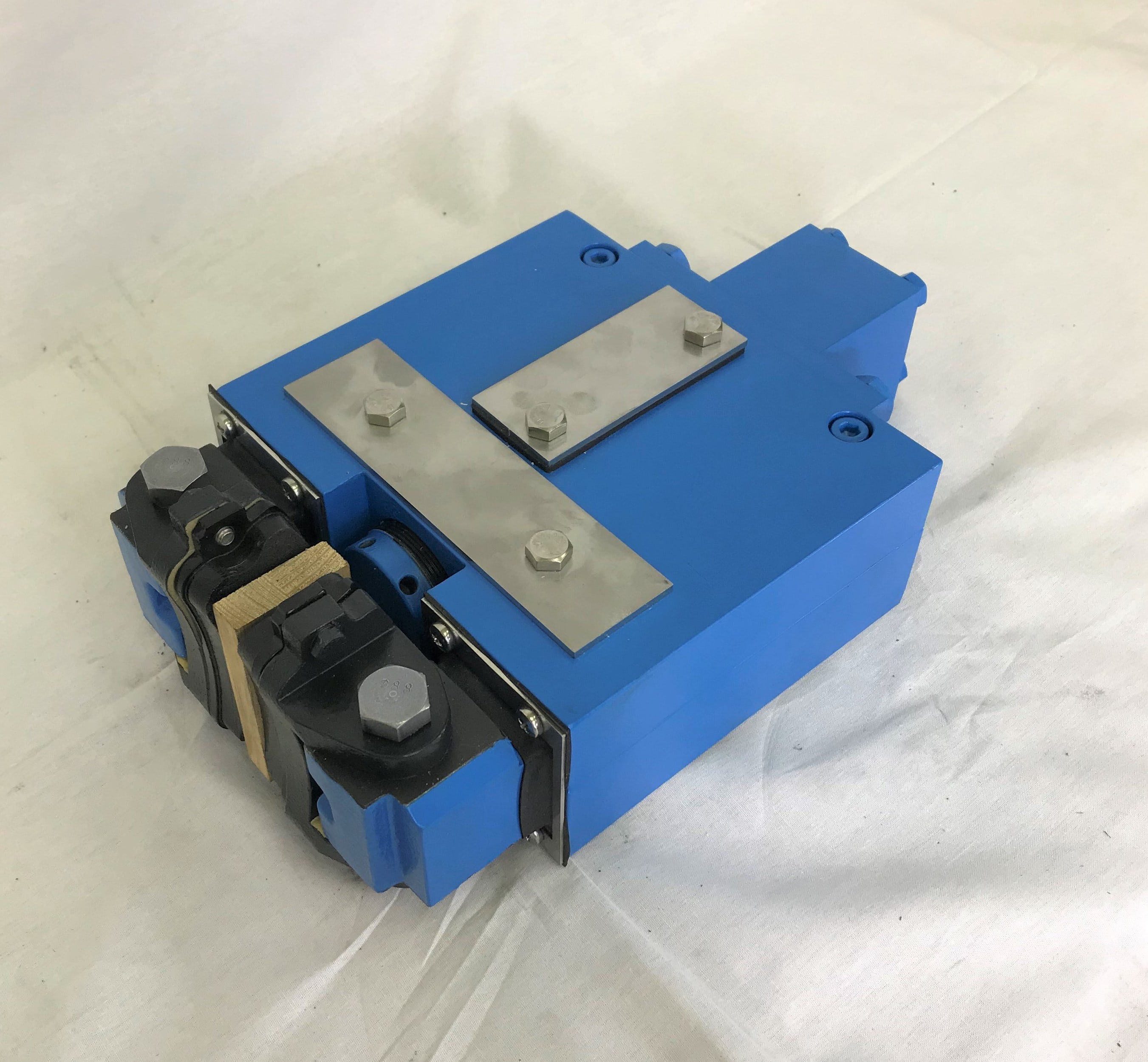

  • CB8-P-50, CB8-P-100, pneumatic compact disc brake
    CB8-P-100-500

    Type: Disc
    Maximum Torque: 1580 N·m
    Diameter: 500 mm

  • Tpi 500/40

    Type: Drum
    Maximum Torque: 1400 N·m
    Diameter: 500 mm

  • CB8-P-50, CB8-P-100, pneumatic compact disc brake
    CB8-P-100-400

    Type: Disc
    Maximum Torque: 1220 N·m
    Diameter: 400 mm

  • Tpi 400/40

    Type: Drum
    Maximum Torque: 1100 N·m
    Diameter: 400 mm

  • Tpi 315/40

    Type: Drum
    Maximum Torque: 1050 N·m
    Diameter: 315 mm

  • CB8-P-50, CB8-P-100, pneumatic compact disc brake
    CB8-P-100-315

    Type: Disc
    Maximum Torque: 910 N·m
    Diameter: 315 mm

  • Tpi 250/40

    Type: Drum
    Maximum Torque: 850 N·m
    Diameter: 250 mm

  • CB8-P-50, CB8-P-100, pneumatic compact disc brake
    CB8-P-50-400

    Type: Disc
    Maximum Torque: 700 N·m
    Diameter: 400 mm

  • CB8-P-50, CB8-P-100, pneumatic compact disc brake
    CB8-P-100-250

    Type: Disc
    Maximum Torque: 680 N·m
    Diameter: 250 mm

  • Tpi 400/32

    Type: Drum
    Maximum Torque: 575 N·m
    Diameter: 400 mm

  • Tpi 315/32

    Type: Drum
    Maximum Torque: 550 N·m
    Diameter: 315 mm

  • CB8-P-50, CB8-P-100, pneumatic compact disc brake
    CB8-P-50-315

    Type: Disc
    Maximum Torque: 530 N·m
    Diameter: 315 mm

  • Tpi 250/32

    Type: Drum
    Maximum Torque: 450 N·m
    Diameter: 250 mm

  • Tpi 315/25

    Type: Drum
    Maximum Torque: 420 N·m
    Diameter: 315 mm

  • CB8-P-50, CB8-P-100, pneumatic compact disc brake
    CB8-P-50-250

    Type: Disc
    Maximum Torque: 400 N·m
    Diameter: 250 mm

  • Tpi 200/32

    Type: Drum
    Maximum Torque: 400 N·m
    Diameter: 200 mm

  • Tpi 250/25

    Type: Drum
    Maximum Torque: 325 N·m
    Diameter: 250 mm

  • CB8-P-50, CB8-P-100, pneumatic compact disc brake
    CB8-P-50-200

    Type: Disc
    Maximum Torque: 300 N·m
    Diameter: 200 mm

  • Tpi 200/25

    Type: Drum
    Maximum Torque: 300 N·m
    Diameter: 200 mm

Commitment to service and support

Hindon is dedicated to providing comprehensive support for our products and the people who depend on them. From initial consultation to inspection, maintenance, and repair services, our goal is to provide the right equipment for your application and to keep your product in top shape for its full lifecycle. If you’re not sure which product is right for your application, call or chat with one of our sales engineers.
