Tpi 630/100, TPi Drum Brakes, fail-safe, pneumatic released

Get a Quote Download Diagram

Product Specifications

Name Tpi 630/100
Type Drum
Actuation Pneumatically Released
Weight 206 kg
Brake Torque min. (N-m) 500
Brake Torque max. (N-m) 8200
Torque Range 500 to 8200 N·m
Brake Type Tpi 630/100
Requested Pressure 6 bar
Pneumatic Cylinder Ø 100/80
D2 - Outer Disc Diameter2 630

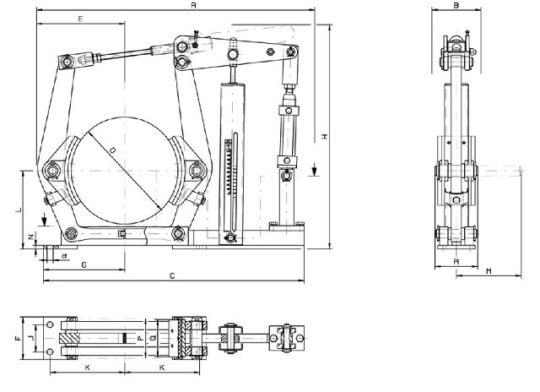

A 1260 mm
B 240 mm
C 1190 mm
D 630 mm
E 465 mm
F 250 mm
G 440 mm
H 1000 mm
J2 170 mm
K2 400 mm
L 420 mm
M 295 mm
N 15 mm
P 236 mm
Q 225 mm
R 244 mm
Compensator Option
  • No Preference
  • With automatic wear compensator
  • Without automatic wear compensator
