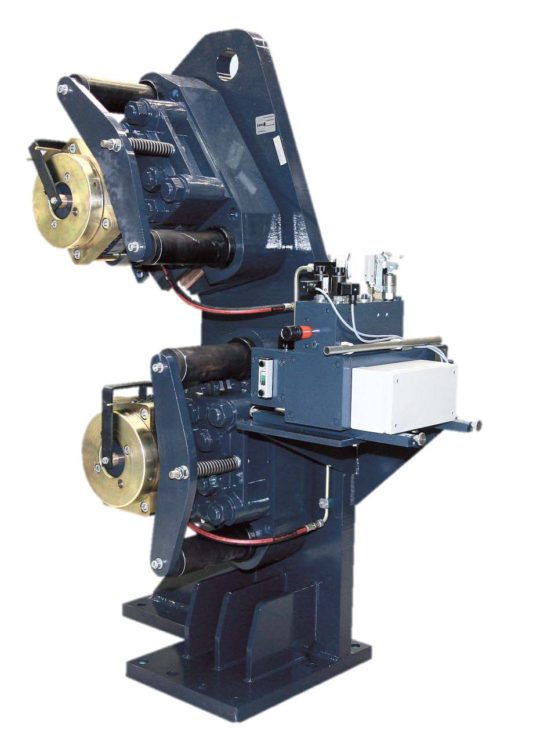

The SHI FC disc brake is a spring applied, hydraulically released, heavy duty industrial floating caliper disc brake.
Advantages of this industrial brake include its fast response time, its high torque output, and its ability to produce a range of torque values with its externally adjustable air-gap.
This hydraulic disc brake is used primarily in holding and emergency stop applications. As a safety brake, it is installed and designed for braking on the output shaft.
|Name||SHI 101 FC 800mm|
|d - Brake Disc Diameter (mm)||800|
|Brake Torque min. (N-m)||7072|
|Brake Torque max. (N-m)||7888|
|Fa - Clamping Force at c = 1 mm||29 kN|
|Release Pressure||80 bar|
|Max. Operating Pressure||110 bar|
|Piston Area Each Side||113 cm²|
|Clearance||0.5 to 2.0 mm|
|Max. Oil Volume||0.0455 L|
|Closing Time||max. approx. 0.2 s|
|Tube Diam.||12 x 1.5 mm|
|Valve Size||40 L/min|
|Opening Time||max. approx. 1.0 s|
|Pump Flow Rate||5.8 L/min|
