The SHI FC disc brake is a spring applied, hydraulically released, heavy duty industrial floating caliper disc brake.

Advantages of this industrial brake include its fast response time, its high torque output, and its ability to produce a range of torque values with its externally adjustable air-gap.

This hydraulic disc brake is used primarily in holding and emergency stop applications. As a safety brake, it is installed and designed for braking on the output shaft.

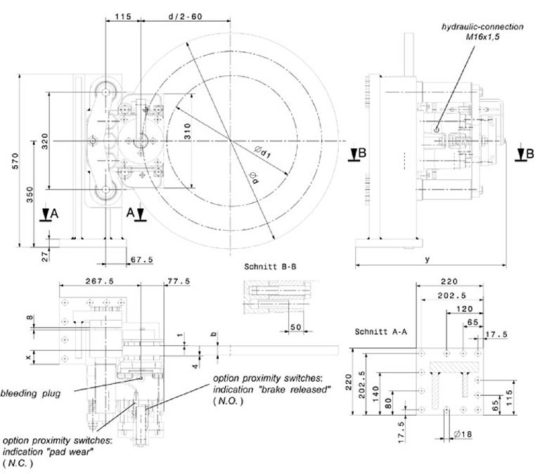

Get a Quote Download Diagram

Product Specifications

NameSHI 102 FC 630mm
ActuationHydraulically Released
d - Brake Disc Diameter (mm)630
Brake Torque min. (N-m)8221
Brake Torque max. (N-m)9200
Fa - Clamping Force at c = 1 mm45.1 kN
Release Pressure35 bar
Max. Operating Pressure110 bar
Piston Area Each Side113 cm²
Clearance0.5 to 2.0 mm
Max. Oil Volume0.0455 L
Closing Timemax. approx. 0.2 s
Tube Diam.12 x 1.5 mm
Valve Size40 L/min
Opening Timemax. approx. 1.0 s
Pump Flow Rate5.8 L/min
  • Proximity Switches "Brake released"
  • Proximity Switches "Pad wear"
