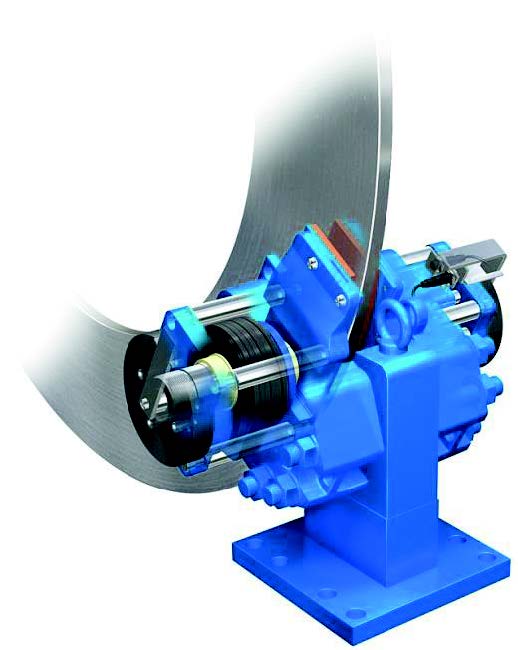

The SHI disc brake is a spring applied, hydraulically released, heavy duty industrial fixed caliper disc brake.
Advantages of this industrial brake include its fast response time, its high torque output, and its ability to produce a range of torque values with its externally adjustable air-gap.
This hydraulic disc brake is used primarily in holding and emergency stop applications. As a safety brake, it is installed and designed for braking on the output shaft.
|Name||SHI 104 630mm|
|d - Disc Diameter (mm)||630|
|Torque Max. (N-m)||15116|
|Torque Min. (N-m)||12791|
|Fa - Clamping Force at c = 1mm (N)||74100|
|Fa - Clamping Force at c = 2mm (N)||68700|
|Fa - Clamping Force at c = 3mm (N)||62700|
|Pl - Release Pressure (bar)||80|
|Pmax - Max Pressure (bar)||110|
|Vmax - Volume at c=2.0mm (ltr)||0.046|
|Mounting Studs||3, M30, 12.9|
|Ma - Fastening Torque (N-m)||2400 at μ=0.14|
