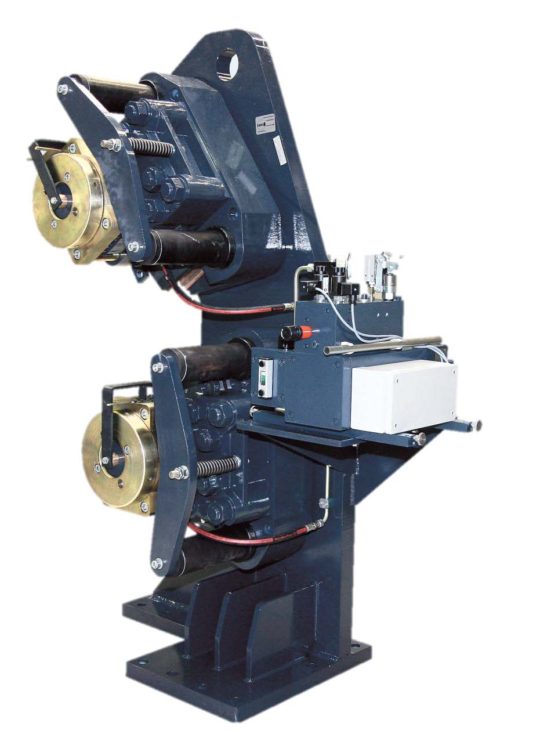

The SHI 202 FC is a floating caliper industrial disc brake. It is spring applied and hydraulically released.

Advantages of this industrial brake include its fast response time, ability to produce relatively high torque output, and torque adjustability.

This hydraulic disc brake is used primarily in holding and emergency stop applications. As a safety brake, it is installed and designed for braking on the output shaft. The floating caliper configuration makes this brake ideal for situations with lateral space constraints.

Hindon provides comprehensive support for SHI FC models including repair services and full engineering and technical support.

Click here to see our full line of industrial brakes.

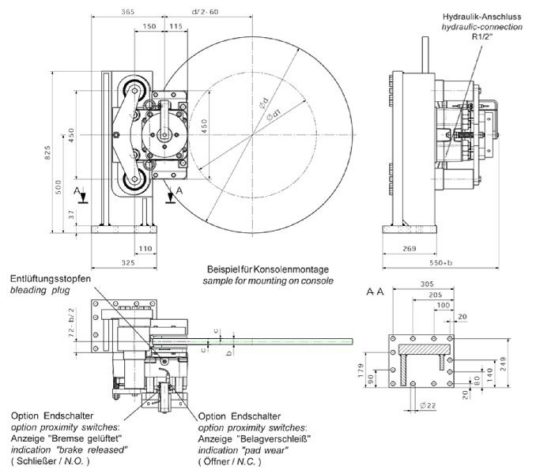

Get a Quote Download Diagram

Product Specifications

Name SHI 202 FC 2000mm
Type Disc
Actuation Hydraulically Released
Weight (kg) 500
d - Brake Disc Diameter (mm) 2000
Brake Torque min. (N-m) 135360
Brake Torque max. (N-m) 180480
Fa - Clamping Force at c = 0.5 mm 240 kN
Fa - Clamping Force at c = 1 mm 220 kN
Fa - Clamping Force at c = 1.5 mm 200 kN
Fa - Clamping Force at c = 2 mm 180 kN
Lining Surface 490 cm²
Release Pressure 160 bar
Max. Operating Pressure 205 bar
Piston Area Each Side 177 cm²
Clearance 0.5 to 2.0 mm
Closing Time max. approx. 0.2 s
Tube Diam. 18 x 2 mm
Valve Size 100 L/min
Opening Time max. approx. 0.9 s
Pump Flow Rate 9 L/min
Options
  • Proximity Switches "Brake released"
  • Proximity Switches "Pad wear"
