The SHI 251 FC is a heavy-duty industrial floating caliper disc brake. It is a hydraulic fail-safe brake, meaning it is spring applied and hydraulically released.

Advantages of this caliper disc brake include its fast response time, high torque output, and ability to used in situations with space constraints. It has an externally adjustable air-gap which provides wide-ranging torque adjustability.

This hydraulic disc brake is often used as a holding or e-stop brake, for example on winches and hoist drums. As a safety brake, it’s designed for braking on the output shaft. When compared to a comparable fixed caliper brake, floating caliper brakes are ideal for situations with lateral space constraints.

Hindon provides comprehensive support for SHI FC models including repair services and full engineering and technical support.

Click here to see our full line of industrial brakes.

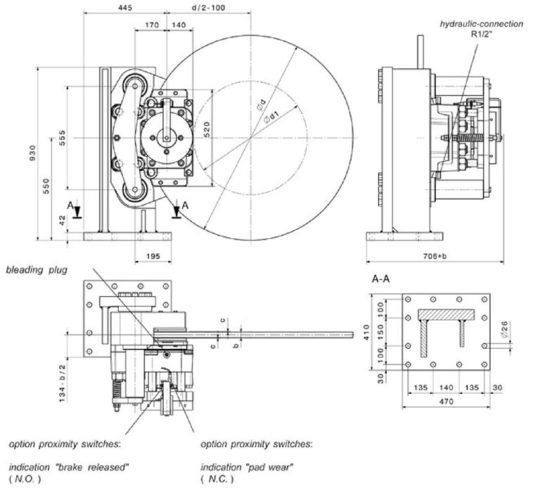

Get a Quote Download Diagram

Product Specifications

NameSHI 251 FC 1500mm
TypeDisc
ActuationHydraulically Released
Weight (kg)860
d - Brake Disc Diameter (mm)1500
Brake Torque min. (N-m)132080
Brake Torque max. (N-m)184920
Fa - Clamping Force at c = 0.5 mm335 kN
Fa - Clamping Force at c = 1 mm302 kN
Fa - Clamping Force at c = 1.5 mm270 kN
Fa - Clamping Force at c = 2 mm254 kN
Lining Surface830 cm²
Release Pressure105 bar
Max. Operating Pressure205 bar
Piston Area Each Side380 cm²
Clearance0.5 to 2.0 mm
Closing Timemax. approx. 0.2 s
Tube Diam.18 x 2 mm
Valve Size100 L/min
Opening Timemax. approx. 0.9 s
Pump Flow Rate9 L/min
Options
  • Proximity Switches "Brake released"
  • Proximity Switches "Pad wear"
