The SHI 252 FC is a heavy-duty industrial floating caliper disc brake. As a hydraulic fail-safe brake, it is spring applied and hydraulically released.

Advantages of this caliper disc brake include its fast response time, high torque output, and ability to used in situations with space constraints. It has an externally adjustable air-gap which provides wide-ranging torque adjustability.

This hydraulic disc brake is often used as a holding or emergency brake, for example on winches and hoist drums. As a safety brake, it’s designed for braking on the output shaft. When compared to a comparable fixed caliper brake, floating caliper brakes are ideal for situations with lateral space constraints.

Hindon provides comprehensive support for SHI FC models including repair services and full engineering and technical support.

Click here to see our full line of industrial brakes.

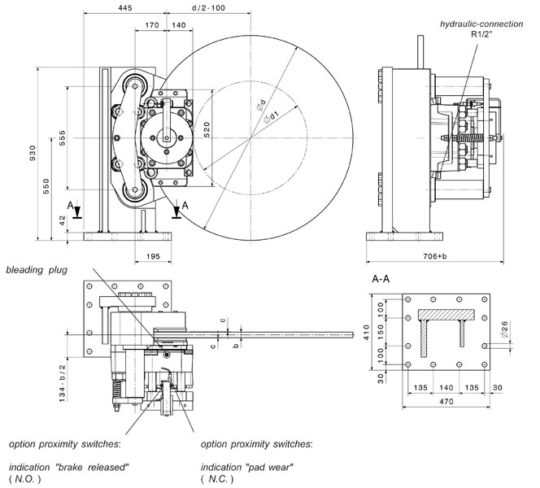

Get a Quote Download Diagram

Product Specifications

Name SHI 252 FC 2500mm
Type Disc
Actuation Hydraulically Released
Weight (kg) 860
d - Brake Disc Diameter (mm) 2500
Brake Torque min. (N-m) 294400
Brake Torque max. (N-m) 418880
Fa - Clamping Force at c = 0.5 mm 440 kN
Fa - Clamping Force at c = 1 mm 400 kN
Fa - Clamping Force at c = 1.5 mm 360 kN
Fa - Clamping Force at c = 2 mm 320 kN
Lining Surface 830 cm²
Release Pressure 140 bar
Max. Operating Pressure 205 bar
Piston Area Each Side 380 cm²
Clearance 0.5 to 2.0 mm
Closing Time max. approx. 0.2 s
Tube Diam. 18 x 2 mm
Valve Size 100 L/min
Opening Time max. approx. 0.9 s
Pump Flow Rate 9 L/min
Options
  • Proximity Switches "Brake released"
  • Proximity Switches "Pad wear"
