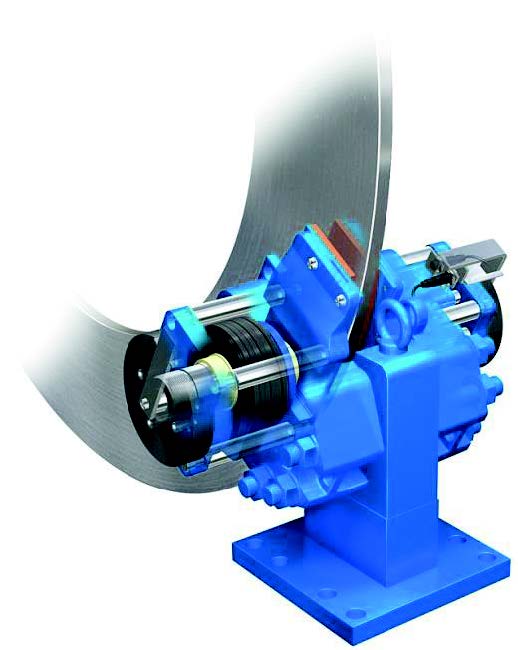

The SHI 281 disc brake is a spring applied, hydraulically released, fixed caliper disc brake.

Advantages of this heavy-duty industrial caliper disc brake include its high torque output, fast response time, and ability to produce a range of torque values with its externally adjustable air-gap.

This hydraulic disc brake is primarily used as a safety brake in holding and e-stop applications. As a safety brake, it is designed for braking on the output shaft. When compared to a comparable floating caliper brake, fixed caliper brakes are ideal for applications where space constraints don’t present an issue. Fixed caliper brakes also provide the advantage of being able to go longer without adjustment.

Hindon provides comprehensive support for SHI models including repair services and full engineering and technical support.

Click here to see our full line of industrial brakes.

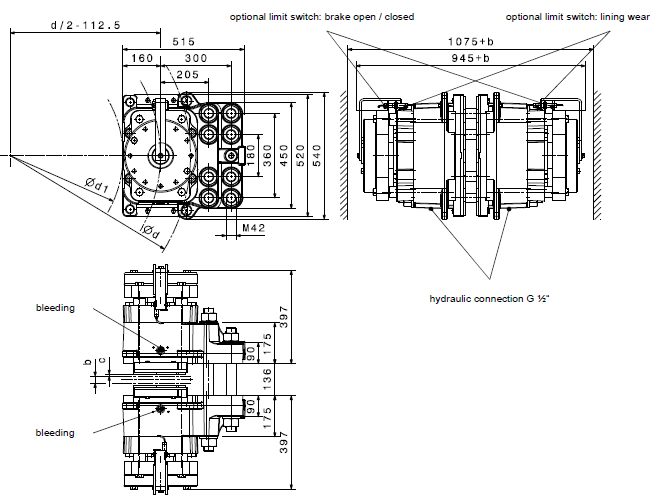

Get a Quote Download Diagram

Product Specifications

NameSHI 281 1750mm
TypeDisc
ActuationHydraulically Released
d - Disc Diameter (mm)1750
Torque Max. (N-m)277550
Torque Min. (N-m)240950
Fa - Clamping Force at c = 1mm (N)455000
Fa - Clamping Force at c = 2mm (N)425000
Fa - Clamping Force at c = 3mm (N)395000
Pl - Release Pressure (bar)135
Pmax - Max Pressure (bar)175
Vmax - Volume at c=2.0mm (ltr)0.181
Weight (kg)900
Mounting Studs8, M42, 12.9
Ma - Fastening Torque (N-m)6200 at μ=0.14
LiningsSinter
Friction Coefficient0.4

industrial fixed caliper disc brake, hydraulic fail-safe brake, SHI 281-282
