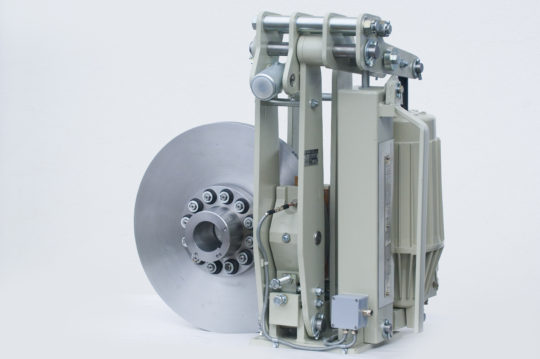

The SST disc brake is a spring applied, electrohydraulic thruster released, heavy duty industrial disc brake.
Advantages of this industrial brake include its ability to operate reliably at high duty cycles and ability to produce high braking torques.
This thruster brake is often used as a service brake in a wide range of industries including on cranes (especially hoists with high speeds), overland conveyors, mining equipment, and in steel mills.
|Actuation||Electrohydraulic Thruster Released|

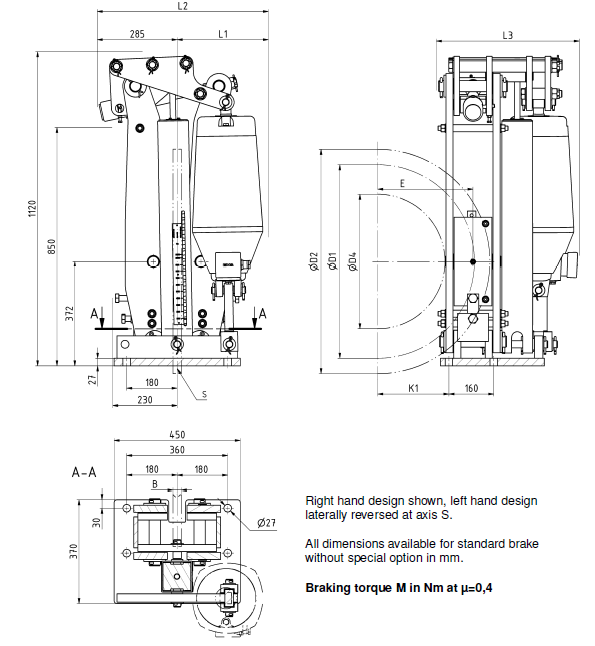

|øD2 - Disc Diameter (mm)||1250|
|øD1 - Theoretical Friction Diameter (mm)||1140|
|øD4 - Max Coupling Diameter (mm)||940|
|Brake Torque min. (N-m)||2120|
|Brake Torque max. (N-m)||8500|
|Weight without Thruster (kg)||130|
Commitment to service and support
Hindon is dedicated to providing comprehensive support for our products and the people who depend on them. From initial consultation to inspection, maintenance, and repair services, our goal is to provide the right equipment for your application and to keep your product in top shape for its full lifecycle. If you’re not sure which product is right for your application, call or chat with one of our sales engineers.
