Invicta Vibrator’s HVL60-200/1000 is a hydraulic linear vibrator that uses two contra-rotating shafts that are mounted in parallel and driven independently. The shafts are locked together by a pair of mechanical gears to ensure pure linear motion is achieved.

HVL60-200/1000 has 4 adjustable weight settings.  Based on these settings, CF ranges from 30,030 lbs to 44,000 lbs, Working Moment ranges from 2,151 lb-in to 3,161 lb-in, and Weight ranges from 1,562 lbs to 1,641 lbs.



Get a Quote Download Diagram

Product Specifications

Name HVL60-200/1000
Type Hydraulic
Product Series HVL
Centrifugal Force (lbs) 44000 lbs
Working Moment (x2) (lb/in) 3161 lb-in
Weight (lbs) 1641 lb
A (in) 43.90 in
B (in) 0
C (in) 36.38 in
D (in) 5.91 in
E (in) 34.06 in
F (in) 19.09 in
G (in) 10.00 in
H (in) 0.31 in
J (in) 1.22 in
K (in) 1.22 in
L (in) 21.22 in
M (in) 7.52 in

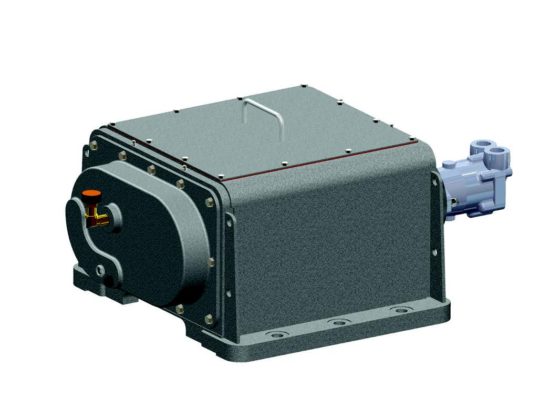

HVL Hydraulic Vibrator - Hindon

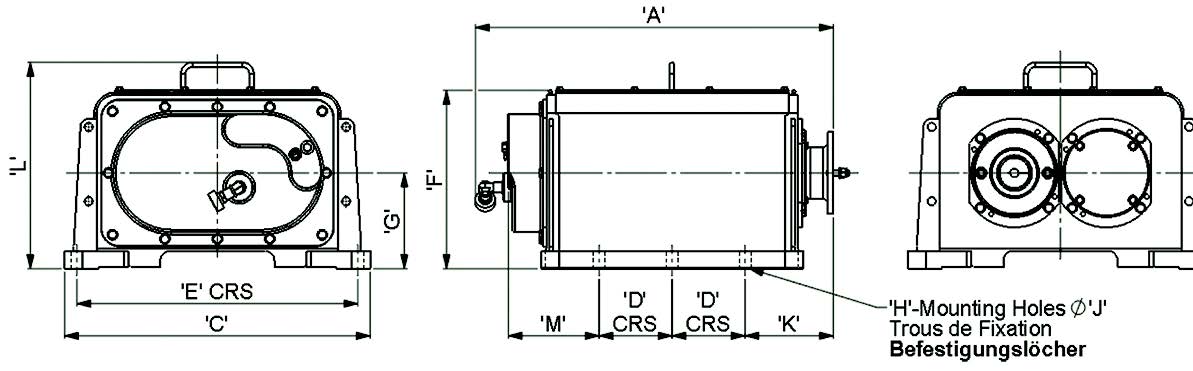

HVL Hydraulic Vibrator Diagram - Hindon
