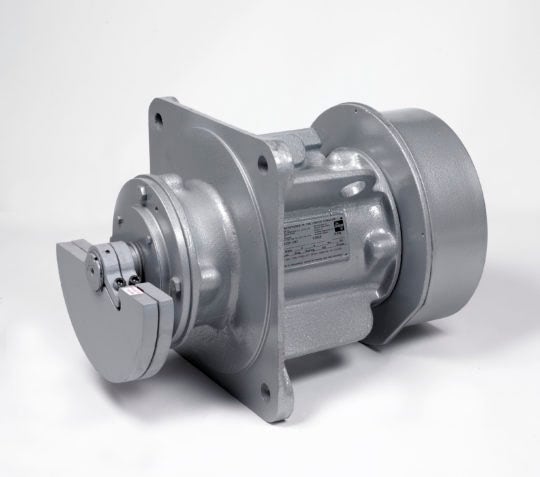

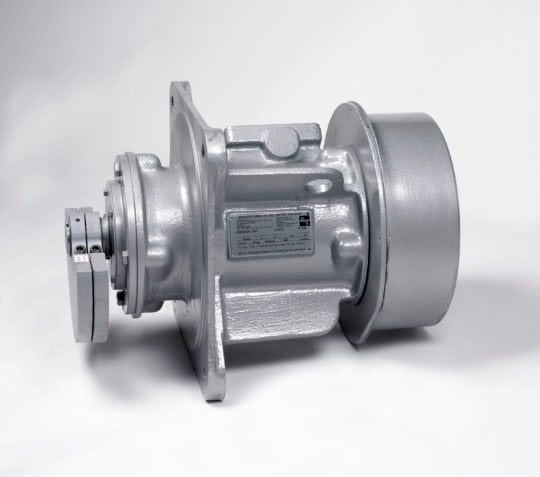

SFL50-55/4 model 4 pole single flanged L-series industrial electric vibrator is designed for vertical flange mounted applications which require a horizontal circular motion.

Get a Quote Download Diagram

Product Specifications

Name SFL50-55/4
Type Industrial Electric
Product Series SFL
Mount Single Flanged
Speed 4 Pole / 1728 RPM - 60Hz
Weight 396 lbs
Centrifugal Force 12100 lbs
Working Moment (x2) 285.3 in-lb
Input Watts 3740 W
Output Watts 3350 W
H.P. 4.49 hp

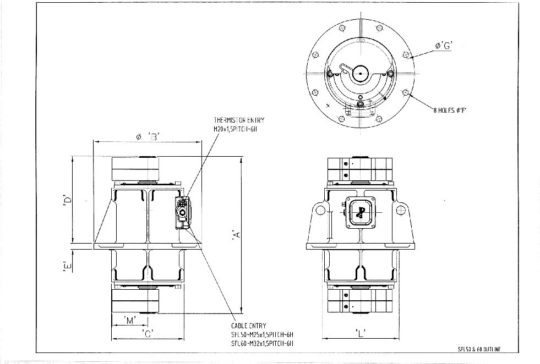

Figure C
A 23.15 in
B 19.09 in
C 12.76 in
D 13.03 in
E 1.06 in
F 1.02 in
G 17.24 in
L 13.58 in
M 7.17 in
N M25 x 1.5p-6H
disc_ao 0.89 in
