Invicta standard rotary electric vibrators provide industry leading quality, reliability, and durability.

BL Series

The base-mounted BL series is Invicta’s standard range of rotary electric vibrator. The standard BL model is commonly used in a wide variety of applications including feeding, screening, conveying, and compaction. We can also provide the sister BLz models, which are ATEX 21 and 22 approved.

SFL Series

The single flange-mounted SFL series of industrial electric vibrator shares many of the same components as the standard BL series but is designed for use in machines which require horizontal circular motion, such as circular sieves and finishing machines.

FBL Series

The base-mounted FBL series is similar to Invicta’s BL series but incorporates a special low height frame and alternative foot mounting design.

Products

170 results

Filter

Name

Type

Max Force (lbs)

View as:
170 results
  • FBL50-42/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 9260 lbs

  • FBL46-42/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 9250 lbs

  • FBLz45-42/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 9250 lbs

  • FBL50-40/4

    Mount: Base Mounted
    Speed: 4 Pole / 1728 RPM - 60Hz
    Max Centrifugal Force: 8770 lbs

  • FBL40-38/6 (60 Hz Only)

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 8300 lbs

  • FBL50-38/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 8170 lbs

  • FBL40-35/4

    Mount: Base Mounted
    Speed: 4 Pole / 1728 RPM - 60Hz
    Max Centrifugal Force: 7700 lbs

  • FBL41-35/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 7700 lbs

  • FBLz40-35/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 7700 lbs

  • FBL50-28/8 (60 Hz Only)

    Mount: Base Mounted
    Speed: 8 Pole / 864 RPM - 60Hz
    Max Centrifugal Force: 6060 lbs

  • FBLz40-27/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 5950 lbs

  • FBL30-25/4

    Mount: Base Mounted
    Speed: 4 Pole / 1728 RPM - 60Hz
    Max Centrifugal Force: 5500 lbs

  • FBL40-24/4

    Mount: Base Mounted
    Speed: 4 Pole / 1728 RPM - 60Hz
    Max Centrifugal Force: 5260 lbs

  • FBL40-23/6 (60 Hz Only)

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 5160 lbs

  • FBL40-20/8 (60 Hz Only)

    Mount: Base Mounted
    Speed: 8 Pole / 864 RPM - 60Hz
    Max Centrifugal Force: 4360 lbs

  • FBL30-18/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 3870 lbs

  • FBL30-18/4

    Mount: Base Mounted
    Speed: 4 Pole / 1728 RPM - 60Hz
    Max Centrifugal Force: 3860 lbs

  • FBL40-17/8

    Mount: Base Mounted
    Speed: 8 Pole / 864 RPM - 60Hz
    Max Centrifugal Force: 3690 lbs

  • FBL40-16/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 3440 lbs

  • FBL30-15/6 (60 Hz Only)

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 3280 lbs

  • FBL30-12/8 (60 Hz Only)

    Mount: Base Mounted
    Speed: 8 Pole / 864 RPM - 60Hz
    Max Centrifugal Force: 2620 lbs

  • FBL30-11/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 2380 lbs

  • FBL25-11/4

    Mount: Base Mounted
    Speed: 4 Pole / 1728 RPM - 60Hz
    Max Centrifugal Force: 2350 lbs

  • FBL25-8/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 1740 lbs

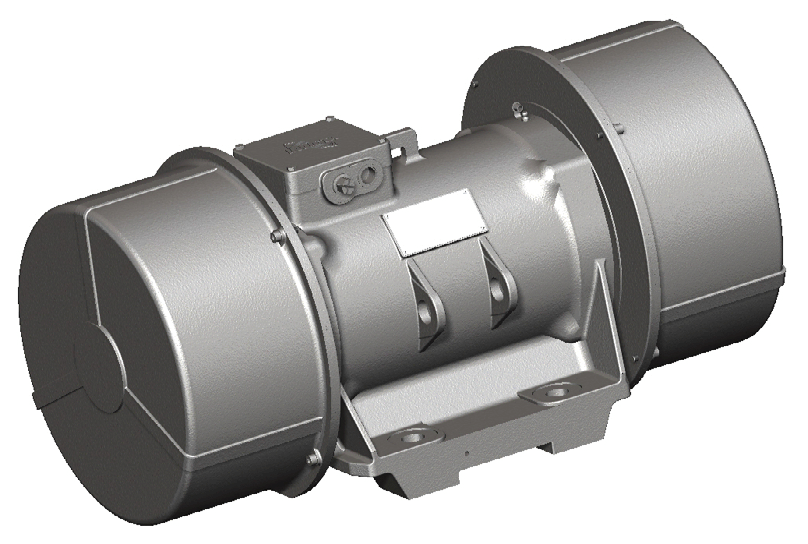

  • Rendering of IBL product line (6 pole). Replacement for MM12 and MSVI 12 models.
    IBL 60-125/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 27500 lbs

  • Rendering of IBL product line (6 pole). Replacement for MM12 and MSVI 12 models.
    IBL 61-125/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 27500 lbs

  • Rendering of IBL product line (2 pole). Replacement for MM18 and MSVI 18 models.
    IBL 60-105/4

    Mount: Base Mounted
    Speed: 4 Pole / 1728 RPM - 60Hz
    Max Centrifugal Force: 23100 lbs

  • Rendering of IBL product line (6 pole). Replacement for MM12 and MSVI 12 models.
    IBL 60-105/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 23100 lbs

  • Rendering of IBL product line (6 pole). Replacement for MM12 and MSVI 12 models.
    IBL 60-90/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 19800 lbs

  • Rendering of IBL product line (8 pole). Replacement for MM9 and MSVI 9 models.
    IBL 60-90/8

    Mount: Base Mounted
    Speed: 8 Pole / 864 RPM - 60Hz
    Max Centrifugal Force: 19800 lbs

  • Rendering of IBL product line (8 pole). Replacement for MM9 and MSVI 9 models.
    IBL 61-90/8

    Mount: Base Mounted
    Speed: 8 Pole / 864 RPM - 60Hz
    Max Centrifugal Force: 19800 lbs

  • Rendering of IBL product line (6 pole). Replacement for MM12 and MSVI 12 models.
    IBL 50-80/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 17160 lbs

  • Rendering of IBL product line (2 pole). Replacement for MM18 and MSVI 18 models.
    IBL 50-75/4

    Mount: Base Mounted
    Speed: 4 Pole / 1728 RPM - 60Hz
    Max Centrifugal Force: 16500 lbs

  • Rendering of IBL product line (6 pole). Replacement for MM12 and MSVI 12 models.
    IBL 50-75/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 16500 lbs

  • Rendering of IBL product line (8 pole). Replacement for MM9 and MSVI 9 models.
    IBL 60-70/8

    Mount: Base Mounted
    Speed: 8 Pole / 864 RPM - 60Hz
    Max Centrifugal Force: 15400 lbs

  • Rendering of IBL product line (2 pole). Replacement for MM18 and MSVI 18 models.
    IBL 50-65/4

    Mount: Base Mounted
    Speed: 4 Pole / 1728 RPM - 60Hz
    Max Centrifugal Force: 14300 lbs

  • Rendering of IBL product line (6 pole). Replacement for MM12 and MSVI 12 models.
    IBL 50-60/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 13200 lbs

  • Rendering of IBL product line (8 pole). Replacement for MM9 and MSVI 9 models.
    IBL 50-57/8

    Mount: Base Mounted
    Speed: 8 Pole / 864 RPM - 60Hz
    Max Centrifugal Force: 12540 lbs

  • Rendering of IBL product line (6 pole). Replacement for MM12 and MSVI 12 models.
    IBL 45-50/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 11000 lbs

  • Rendering of IBL product line (2 pole). Replacement for MM18 and MSVI 18 models.
    IBL 45-45/4

    Mount: Base Mounted
    Speed: 4 Pole / 1728 RPM - 60Hz
    Max Centrifugal Force: 9900 lbs

  • Rendering of IBL product line (8 pole). Replacement for MM9 and MSVI 9 models.
    IBL 50-45/8

    Mount: Base Mounted
    Speed: 8 Pole / 864 RPM - 60Hz
    Max Centrifugal Force: 9900 lbs

  • Rendering of IBL product line (6 pole). Replacement for MM12 and MSVI 12 models.
    IBL 45-42/6

    Mount: Base Mounted
    Speed: 6 Pole / 1152 RPM - 60Hz
    Max Centrifugal Force: 9240 lbs
